Combination Switch Removal Note

  1. Pull the combination switch locks in the direction indicated in the figure and disengage the tab.
  2. Pull the combination switch outward, then remove it.

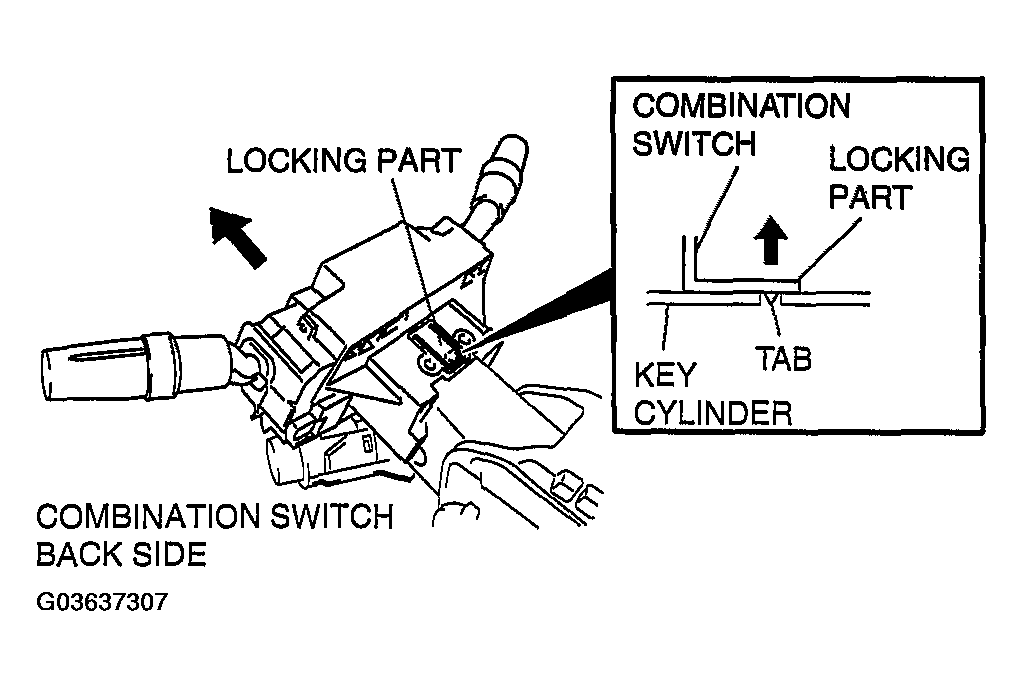

    Fig 1: Pulling Combination Switch Locks
    G03637307Courtesy of MAZDA MOTORS CORP.
