Back-Up Light Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Disconnect the back-up light switch connector and remove the back-up light switch.
  4. Install in the reverse order of removal.

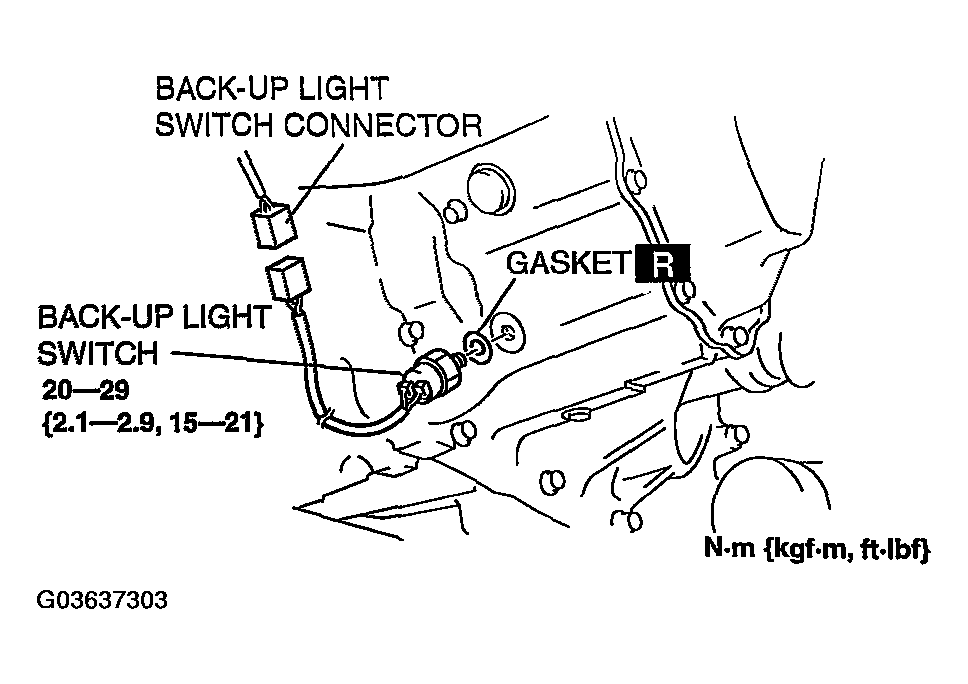

    Fig 1: Back-Up Light Switch Removal/Installation & Tightening Specifications
    G03637303Courtesy of MAZDA MOTORS CORP.
