Home >> Mazda >> 2005 >> 3 i, Standard >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> Steering Location Index

Steering Location Index

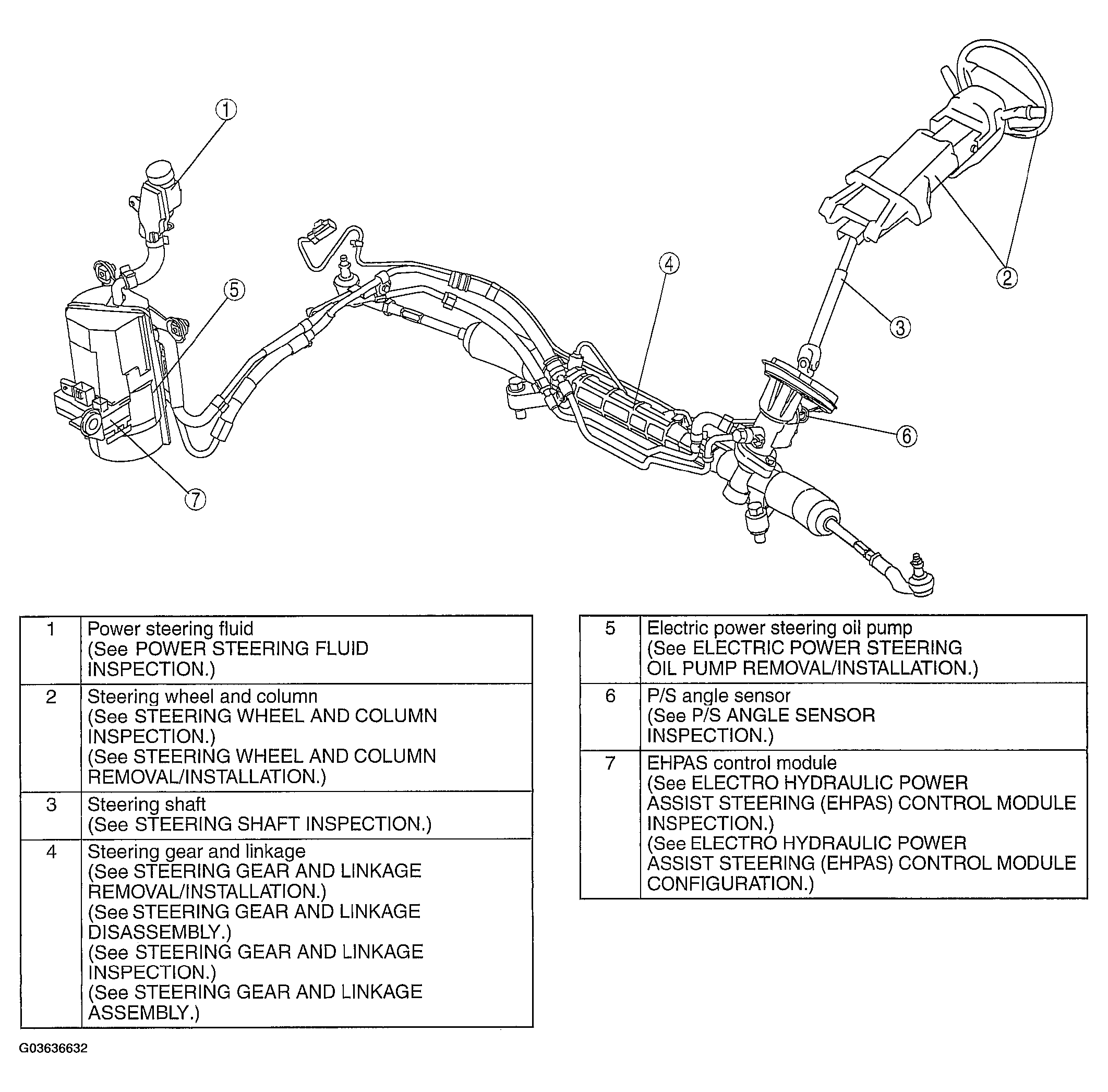

Fig 1: Identifying Power Steering Components

G03636632

Courtesy of MAZDA MOTORS CORP.
