Pending Trouble Code Access Procedure

  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located in the driver compartment.

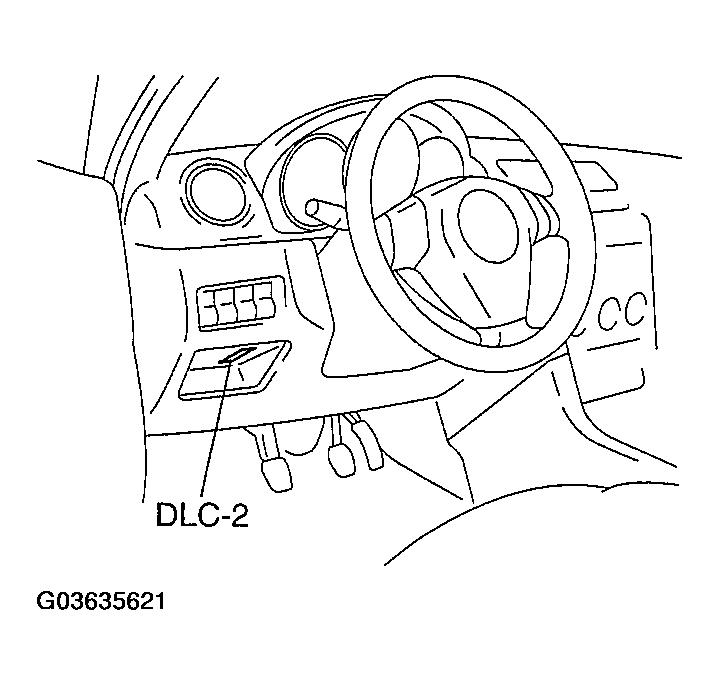

    Fig 1: Locating DLC-2 16-Pin Connector
    G03635621Courtesy of MAZDA MOTORS CORP.
  3. Retrieve the pending trouble codes using the WDS or equivalent.
