Mazda
>>
2005
>>
3 i, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System]
>>
Monitoring System And Control System Device Relationship Chart
>>
California Emission Regulation Applicable Model
California Emission Regulation Applicable Model

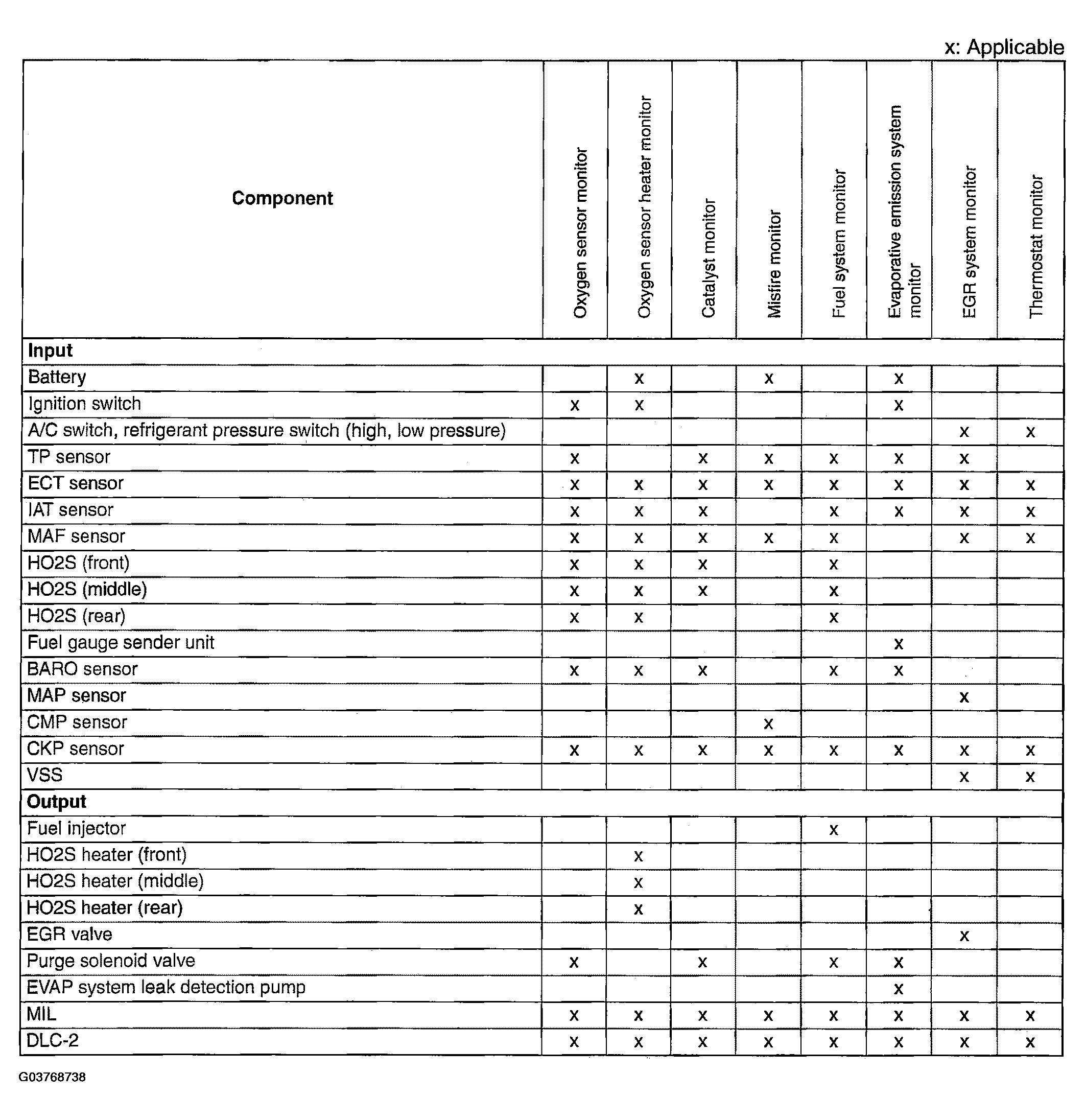

Fig 1: Monitoring System And Control System Device Relationship Chart - California
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
