Home >> Mazda >> 2005 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P0139 >> Except for California Emission Regulation Applicable Model >> Notes

Except for California Emission Regulation Applicable Model: Notes

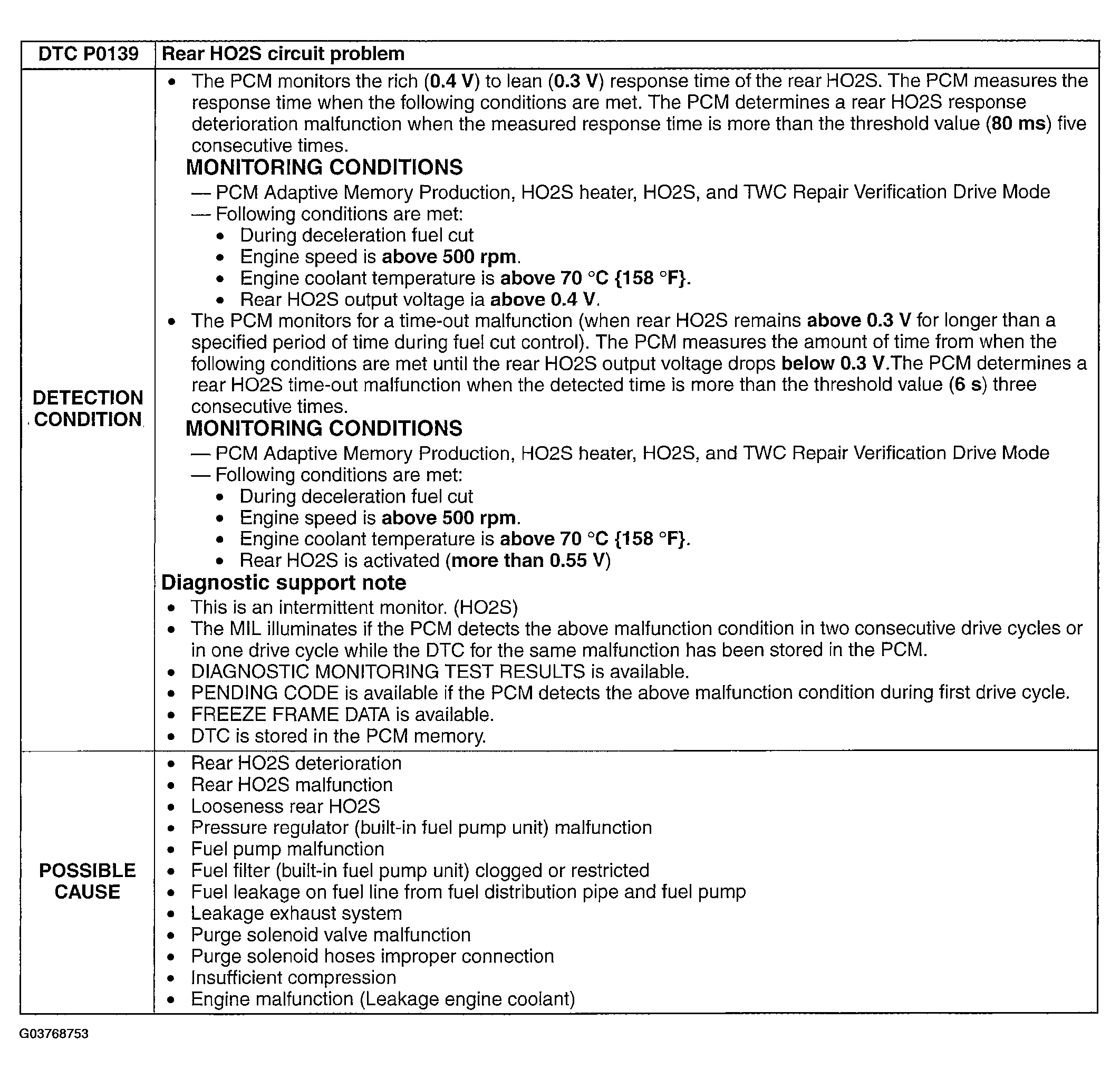

Fig 1: DTC P0139 Detection Condition & Possible Causes

G03768753

Courtesy of MAZDA MOTORS CORP.
