Home >> Mazda >> 2005 >> 3 i, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P0126, P0128 >> Notes

DTC P0126, P0128: Notes

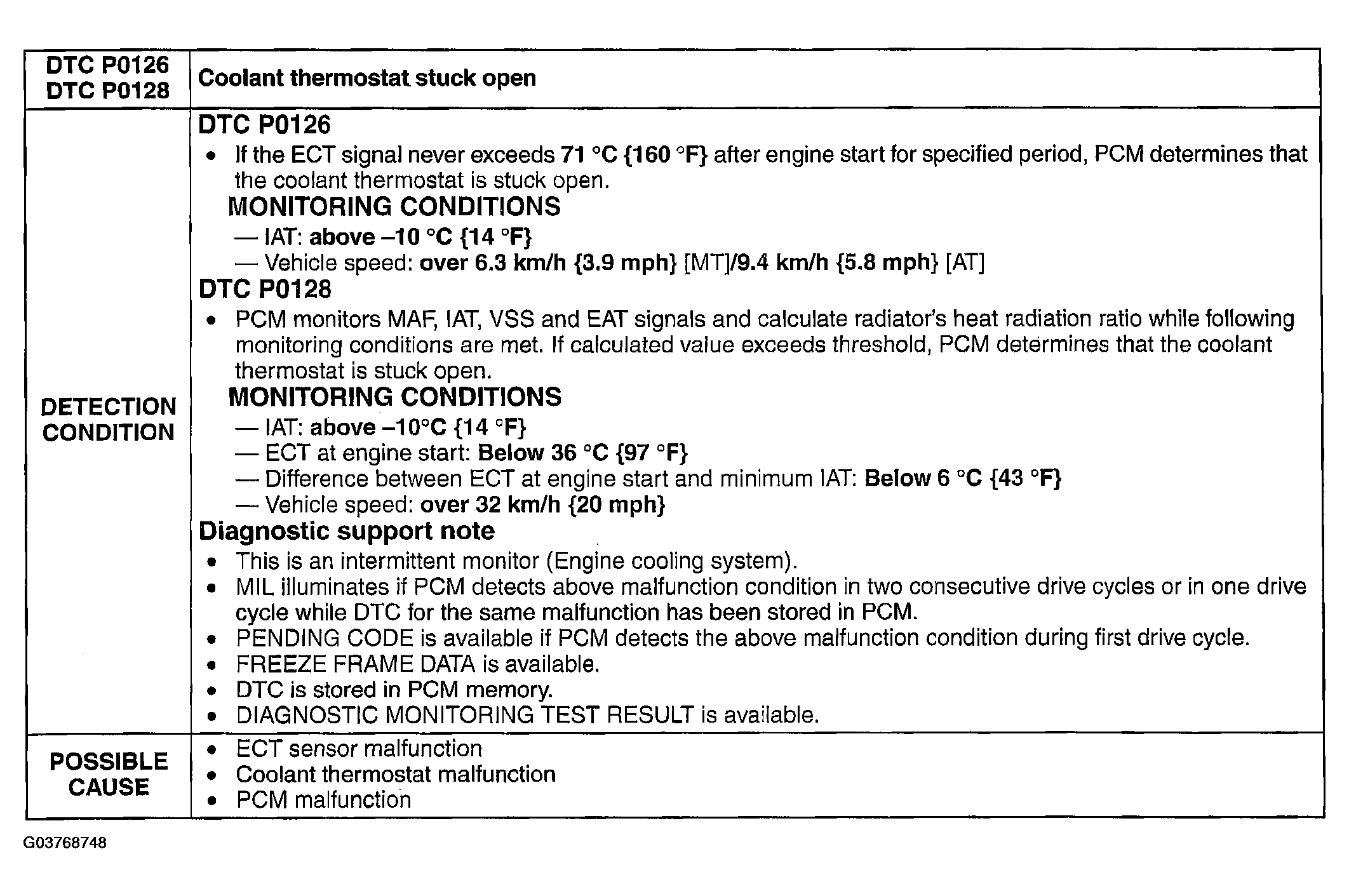

Fig 1: DTC P0126, P0128 Detection Condition & Possible Causes

G03768748

Courtesy of MAZDA MOTORS CORP.
