Middle HO2S Circuit Open/Short Inspection (Sensor): Notes

  1. Disconnect the PCM connector.
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

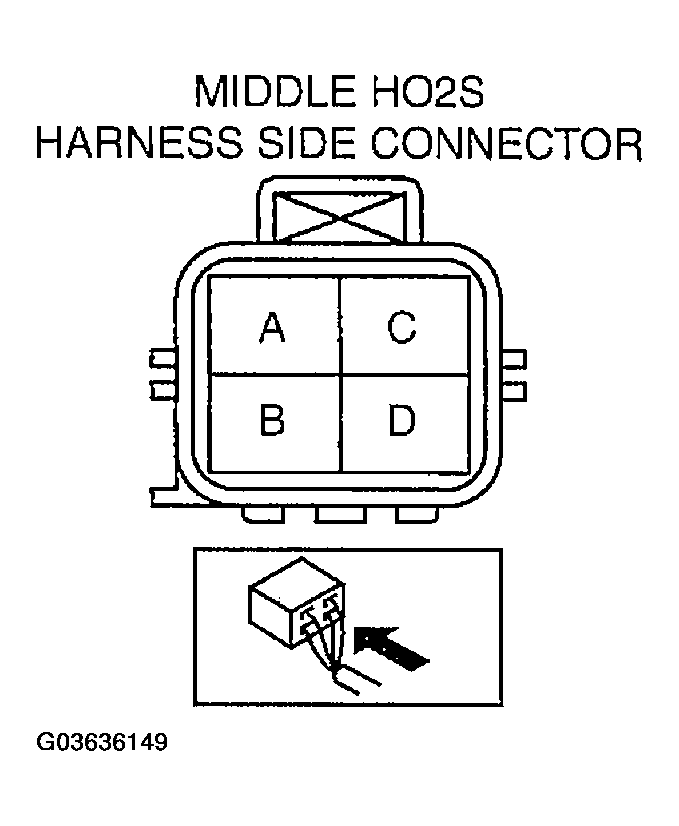

    Fig 1: Identifying Middle HO2S Harness Connector
    G03636149Courtesy of MAZDA MOTORS CORP.
