Oil Pump Installation Note

  1. Tighten the oil pump bolts in two steps in the order indicated in the figure.

    Tightening torque:

    1. 1) 8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
    2. 2) 20-25 N.m {2.1-2.5 kgf.m, 15.2-18.4 ft.lbf}

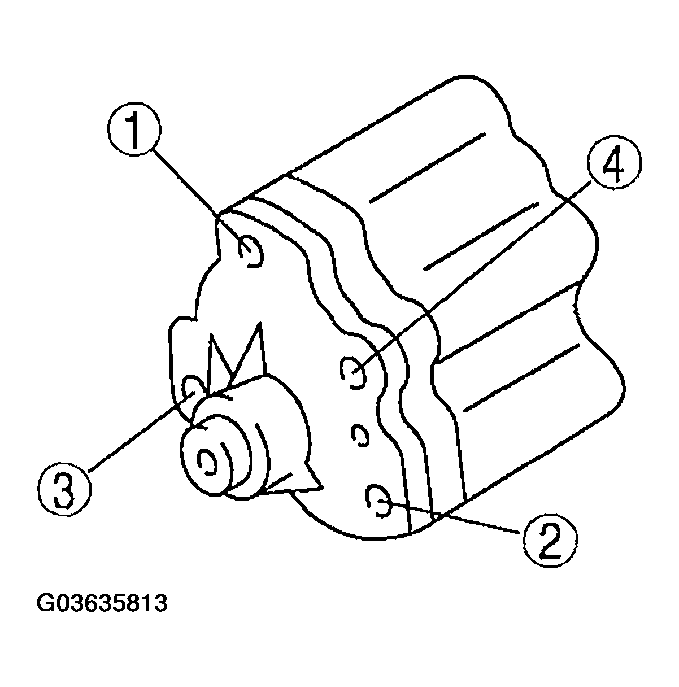

    Fig 1: Oil Pump Bolt Tightening Sequence
    G03635813Courtesy of MAZDA MOTORS CORP.
