Outer Mirror Garnish Installation

  1. Position the outer mirror garnish against the mirror body in the direction of the arrow shown in the figure, and insert the outer mirror garnish clips (6 locations) into the mirror body.
  2. Install the outer mirror garnish so that there are no gaps around the component.

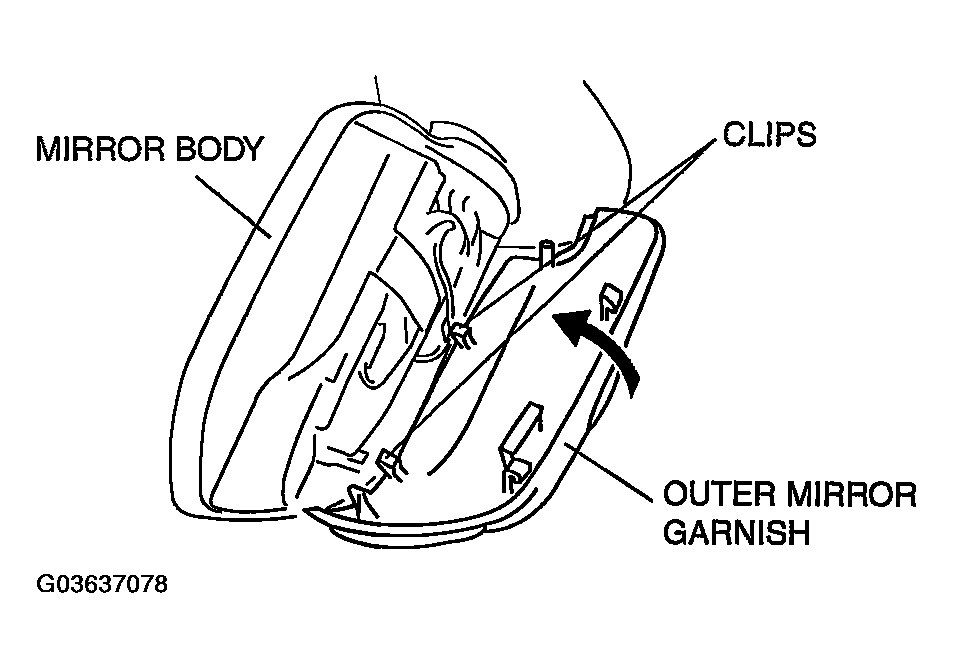

    Fig 1: Installing Outer Mirror Garnish
    G03637078Courtesy of MAZDA MOTORS CORP.
