LCD Unit Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.
  4. Install in the reverse order of removal.

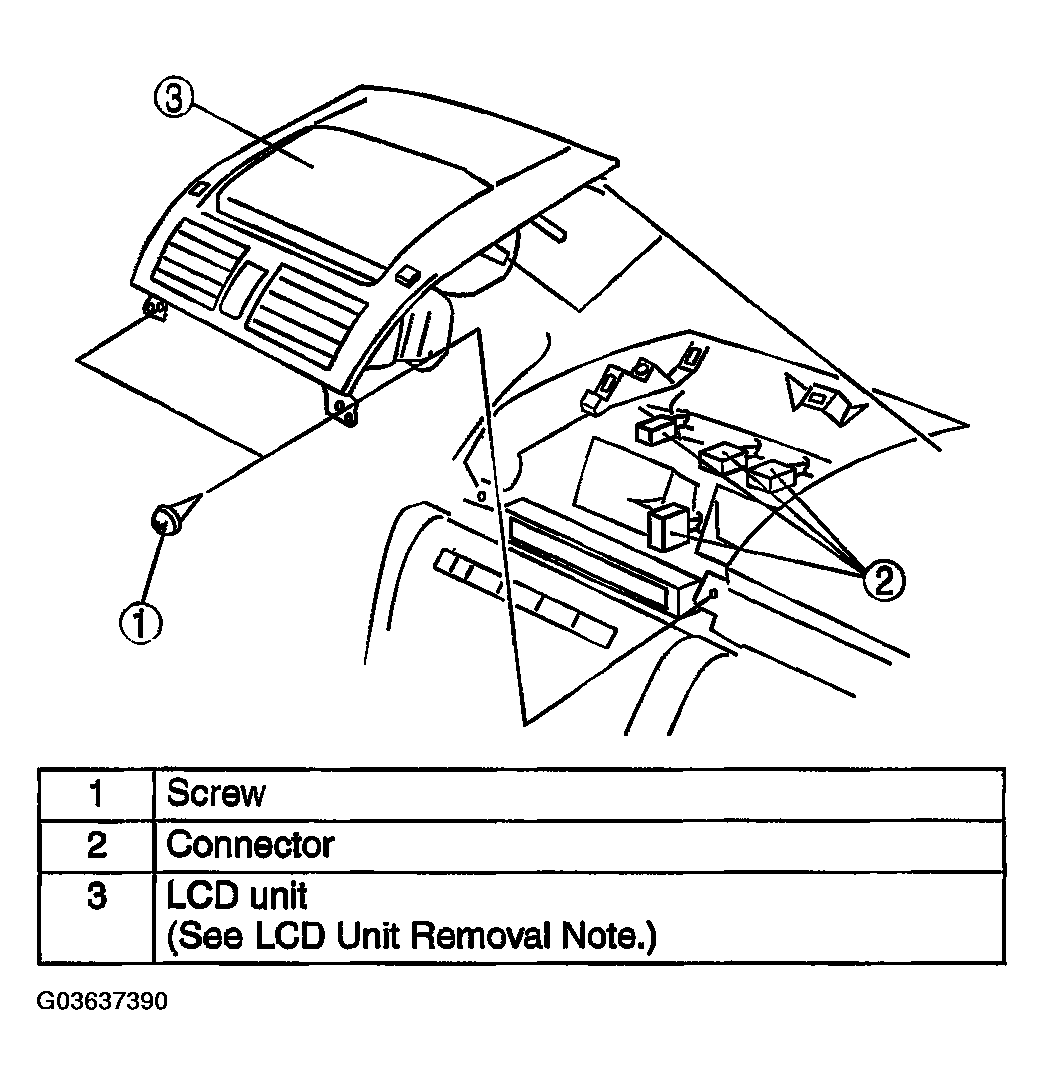

    5. Fig 1: LCD Unit Removal/Installation
    G03637390Courtesy of MAZDA MOTORS CORP.
