Condenser Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the litigate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.
  4. Install in the reverse order of removal.

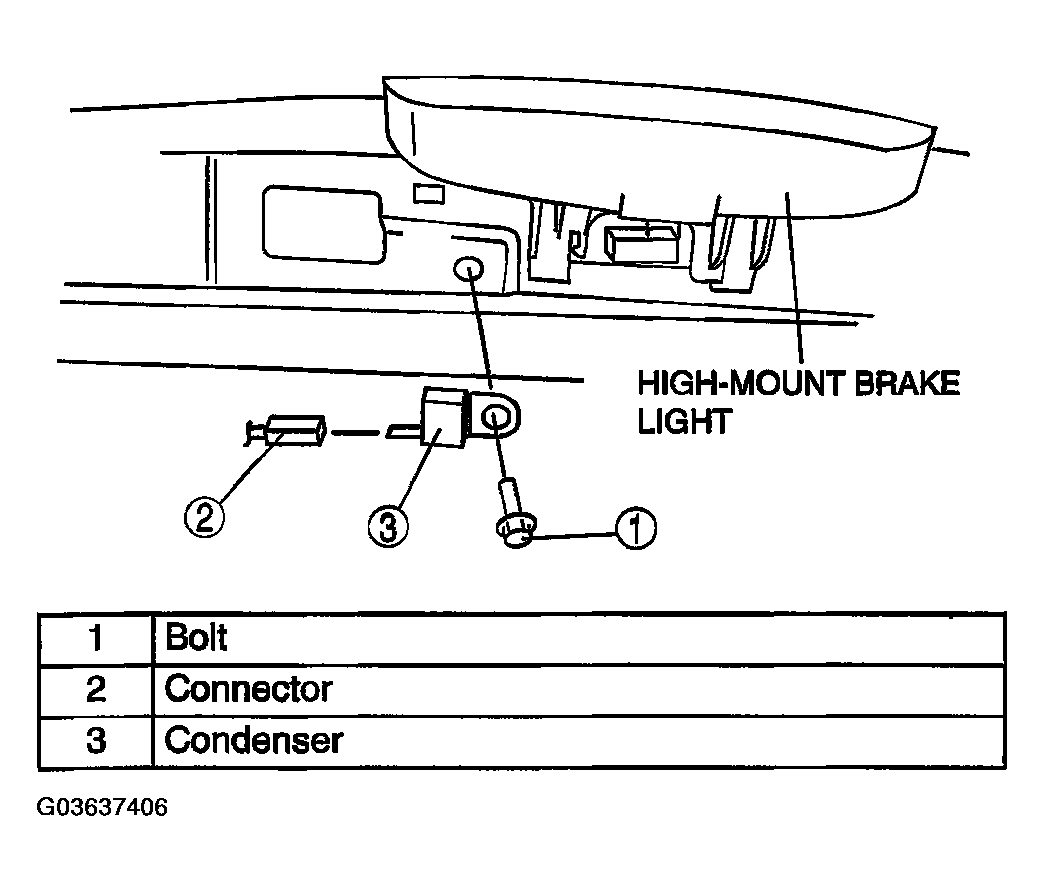

    5. Fig 1: Condenser Removal/Installation
    G03637406Courtesy of MAZDA MOTORS CORP.
