Discharge Headlight Control Module Removal/Installation

WARNING:
  • Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS  )
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION)  )
  4. Remove screws.
  5. Disconnect the connector.
  6. Remove the discharge headlight control module.
  7. Install in the reverse order of removal.

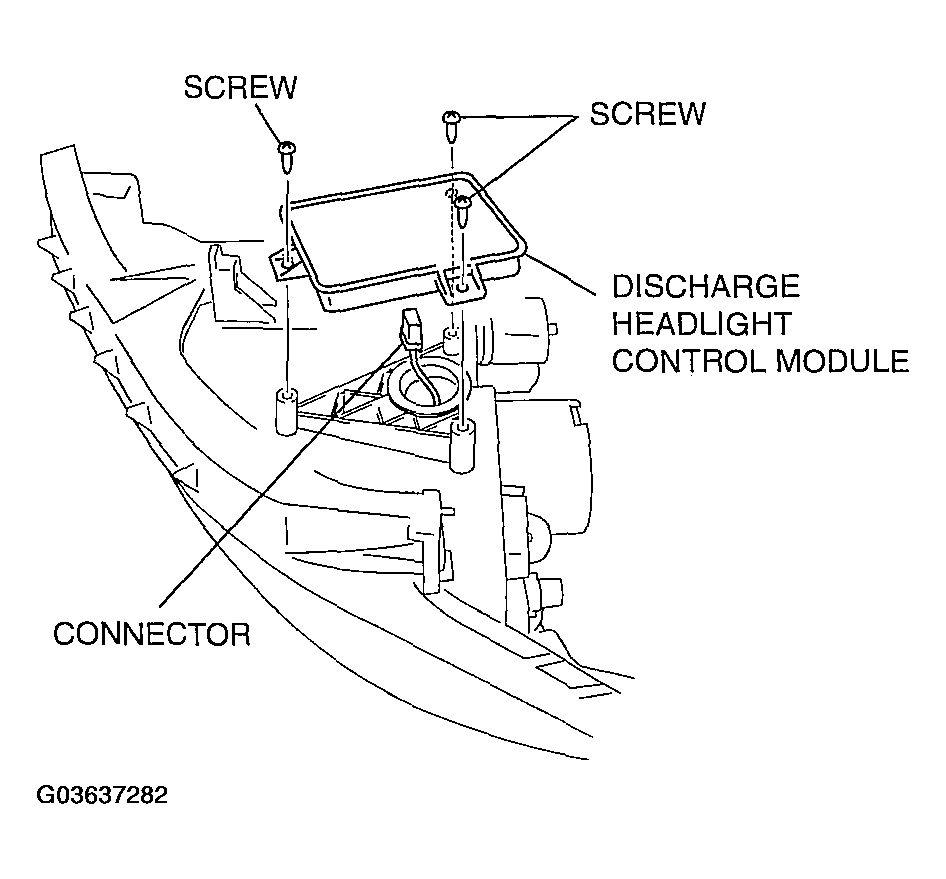

    Fig 1: Discharge Headlight Control Module Removal/Installation
    G03637282Courtesy of MAZDA MOTORS CORP.
