Steering Shaft Inspection

Inspect the column bearing for excessive play and damage.
Verify that the measurement of the steering shaft indicated in the figure is as specified.
- If not within the specification replace the steering shaft component.
Standard

315-320 mm {12.41-12.59 in}

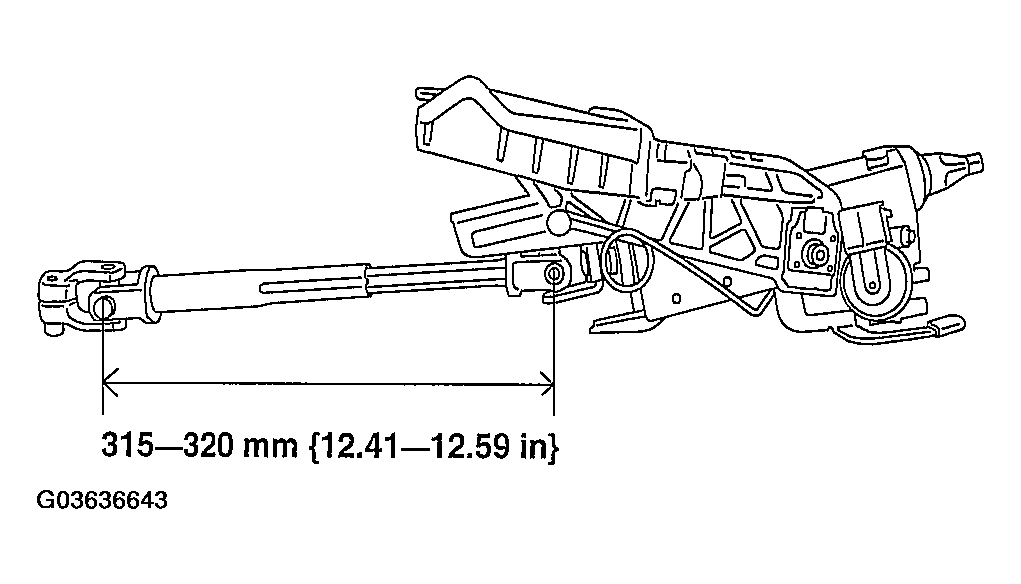

Fig 1: Steering Shaft Length Specifications
Courtesy of MAZDA MOTORS CORP.
Inspect the tilt/telescope mechanism operation for the following.
1. Tilt/telescope lever moves smoothly from the lock to the unlock position.
2. Steering shaft is fixed firmly when the tilt/ telescope lever is locked.
  - If there is any malfunction, replace the steering shaft.

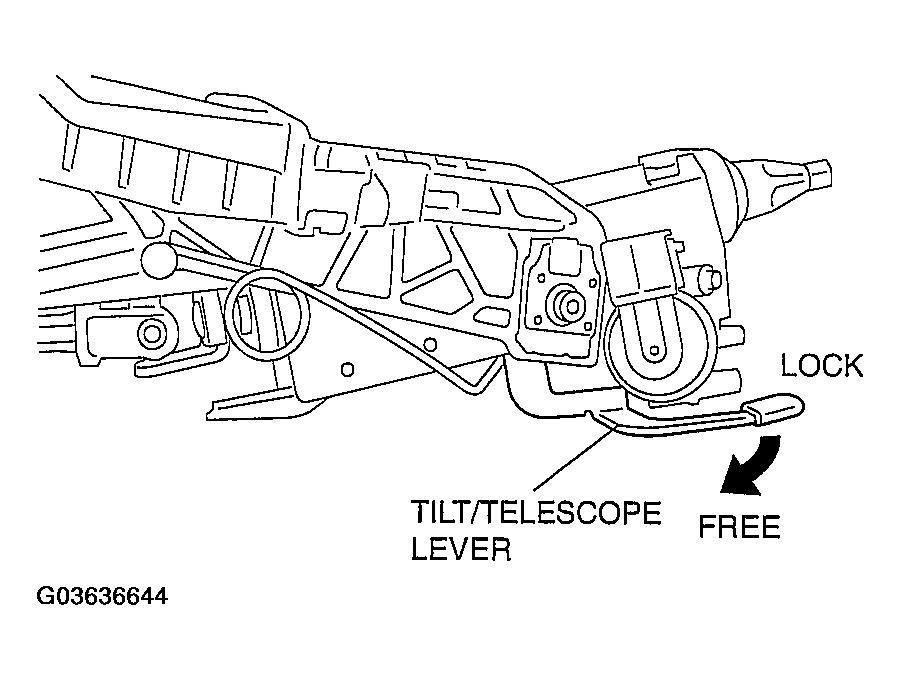

Fig 2: Inspecting Tilt/Telescope Mechanism Operation
Courtesy of MAZDA MOTORS CORP.
