Wiring Harness: Overview

To remove the wiring harness from the clip in the engine room, pry up the hook of the clip using a flathead screwdriver.

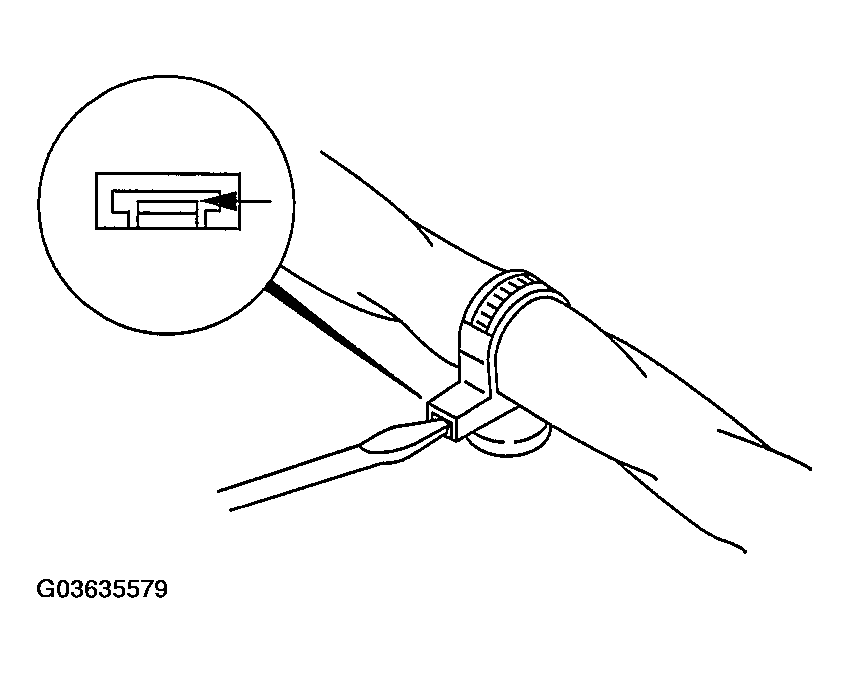

Fig 1: Prying Up Hook Of Clip Using Flathead Screwdriver

Courtesy of MAZDA MOTORS CORP.

CAUTION:

Do not remove the harness protective tape. Otherwise, the wires could rub against the body, which could result in water penetration and electrical shorting.

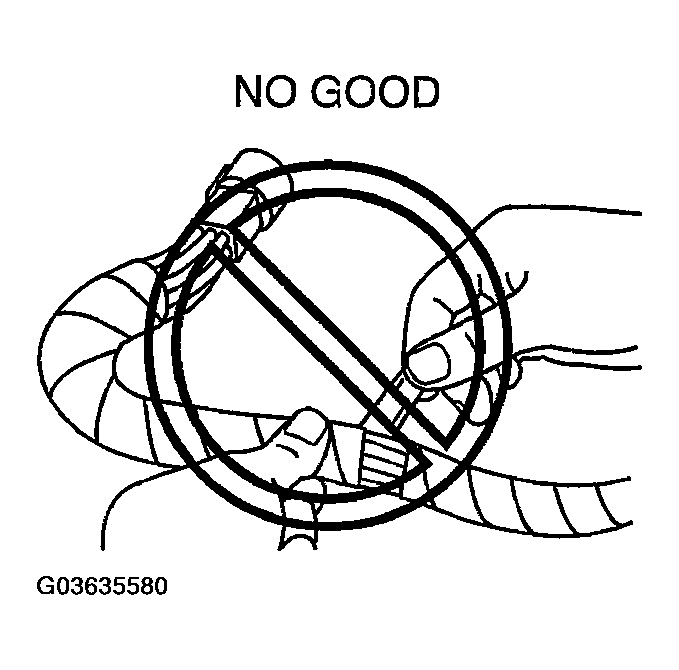

Fig 2: Identifying Harness Protective Tape

Courtesy of MAZDA MOTORS CORP.
