Electrical Troubleshooting Tools: Ohmmeter

CAUTION:

• Do not connect the ohmmeter to any circuit where voltage is applied. This will damage the ohmmeter.

• The ohmmeter is used to measure the resistance between two points in a circuit and to inspect for continuity and short circuits.

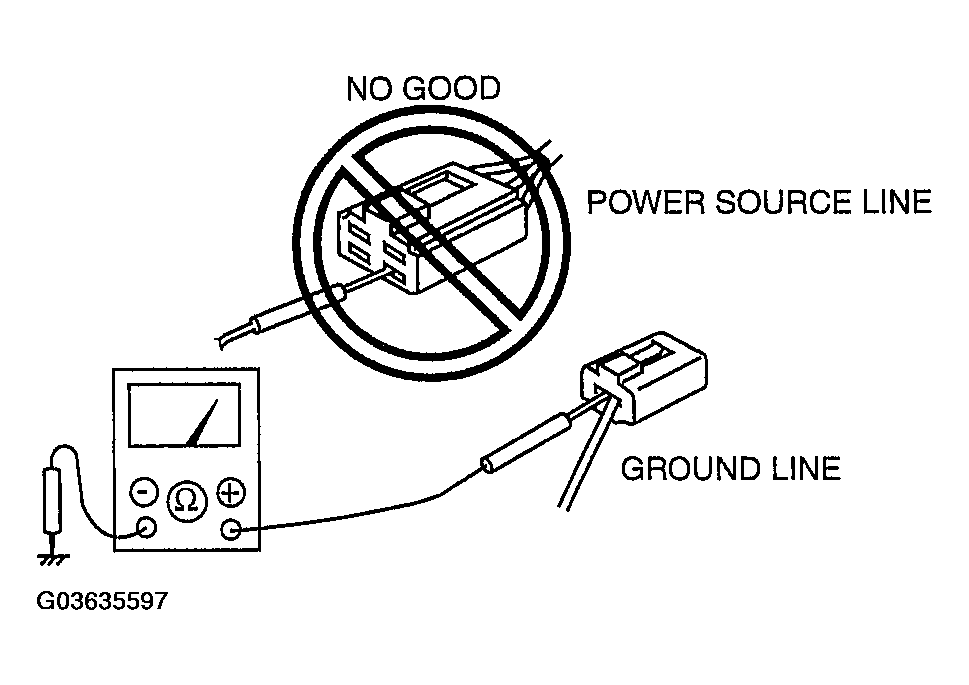

Fig 1: Identifying Proper Connection Of Ohmmeter To Connector

Courtesy of MAZDA MOTORS CORP.
