Pilot Bearing Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Use the SSTs  to install the pilot bearing.

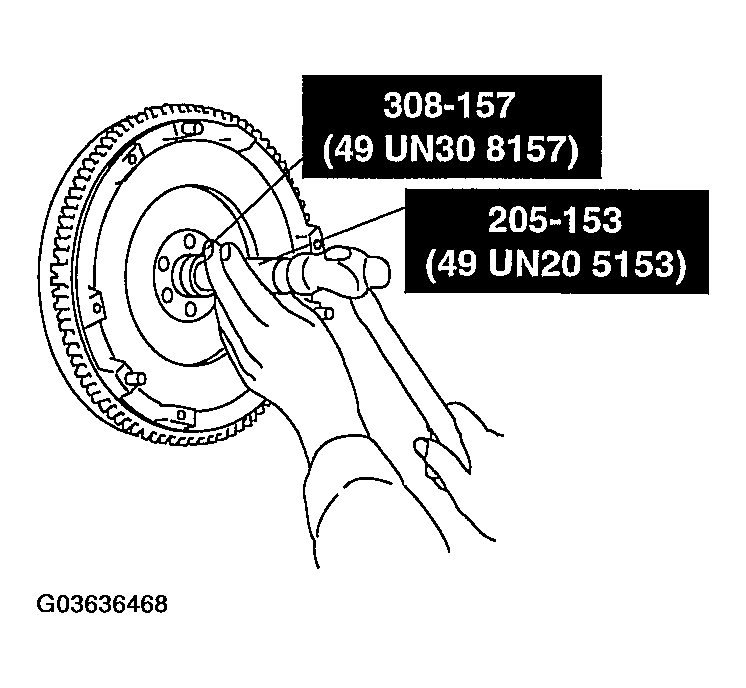

Fig 1: Installing Pilot Bearing
G03636468Courtesy of MAZDA MOTORS CORP.

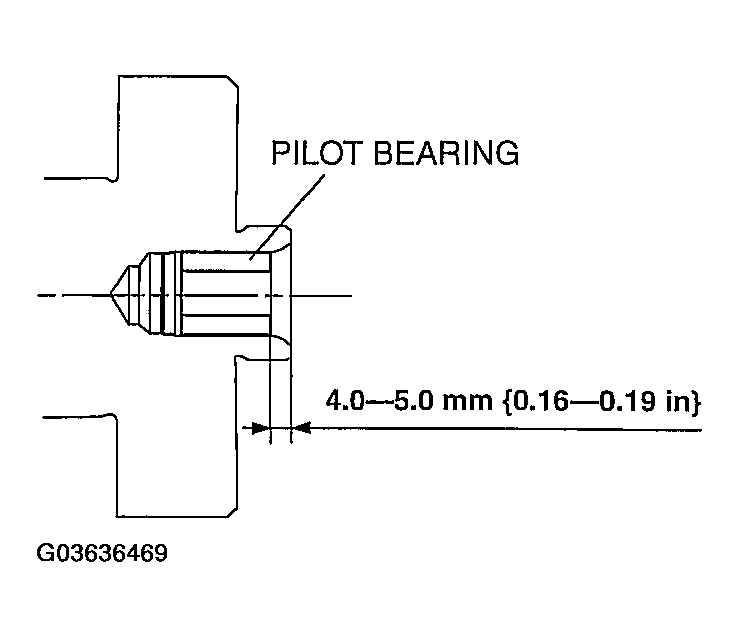

Fig 2: Measuring Pilot Bearing Installation Depth
G03636469Courtesy of MAZDA MOTORS CORP.
