Clutch Unit Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the figure.
  2. Install in the reverse order of removal.

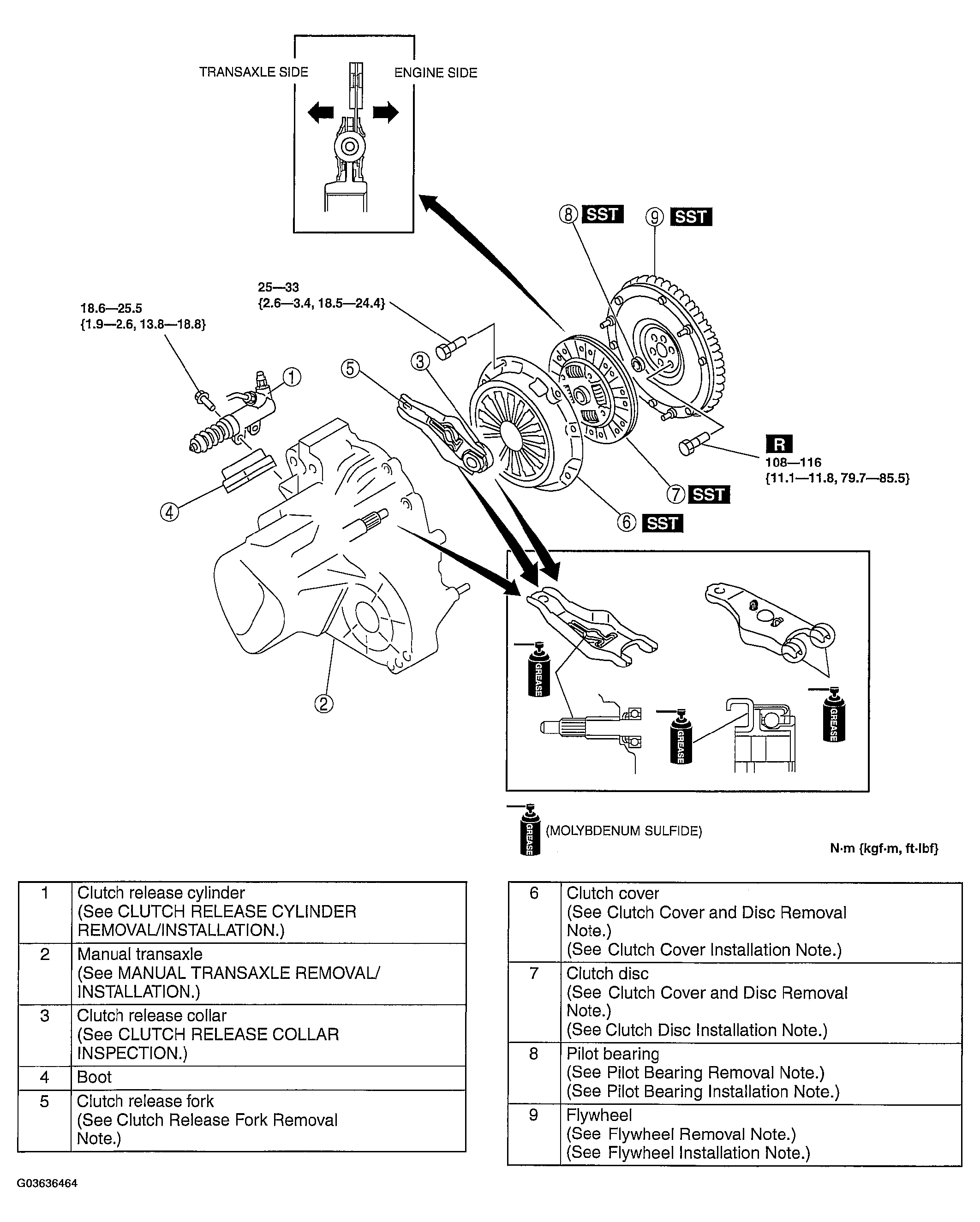

    Fig 1: Clutch Unit Removal/Installation & Tightening Specifications
    G03636464Courtesy of MAZDA MOTORS CORP.
