Flywheel Installation Note
WARNING: This page is about a different variant/trim than selected.
- Clean the crankshaft thread holes.
- Install the flywheel to the crankshaft.
- Hand-tighten the flywheel lock bolts.

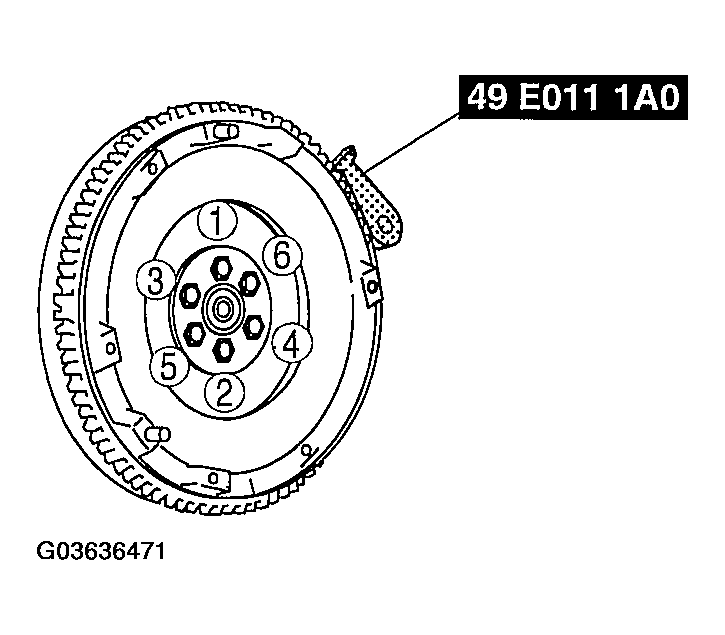

- Install the SST to the flywheel.
- Gradually tighten the flywheel lock bolts in a crisscross pattern.
Tightening torque
108-116 N.m
{11.1-11.8 kgf.m, 79.7-85.5 ft.lbf}
