Home >> Mazda >> 2005 >> 3 i, Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel System Location Index >> Fuel Tank Side >> For California emission regulation applicable model

For California emission regulation applicable model

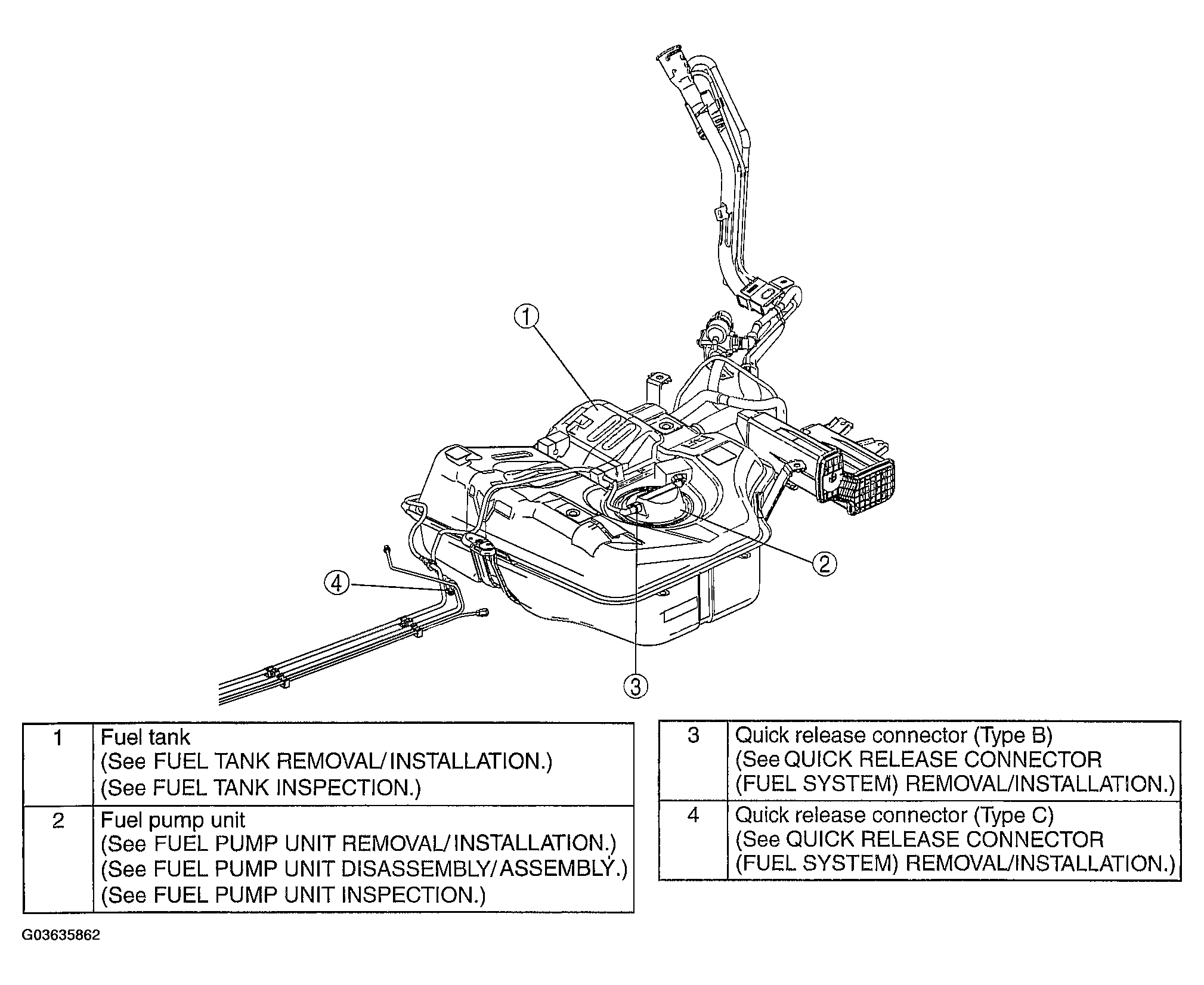

Fig 1: Identifying Fuel System Components - Fuel Tank Side (California)

G03635862

Courtesy of MAZDA MOTORS CORP.
