Horn Removal/Installation

  1. Disconnect the negative battery cable.
  2. Slightly bend back the mudguard.
  3. Remove in the order indicated in the figure.
  4. Install in the reverse order of removal.

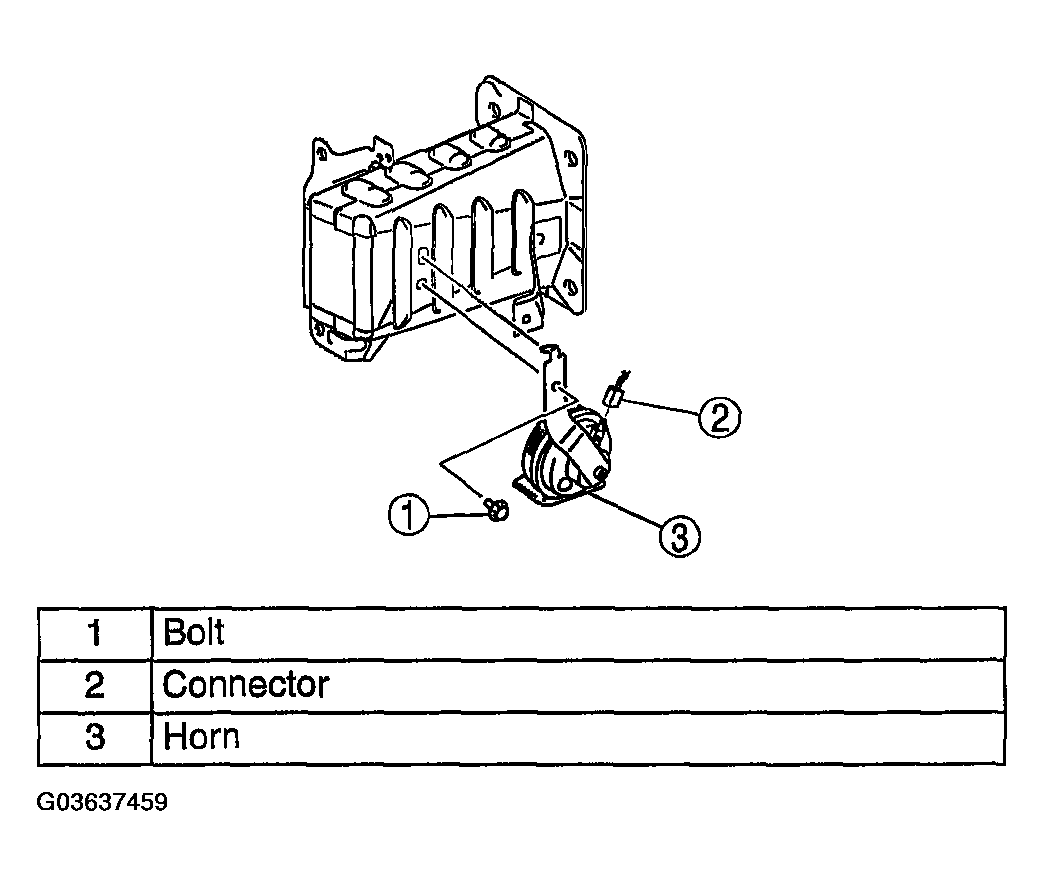

    5. Fig 1: Horn Removal/Installation
    G03637459Courtesy of MAZDA MOTORS CORP.
