Fuse Block

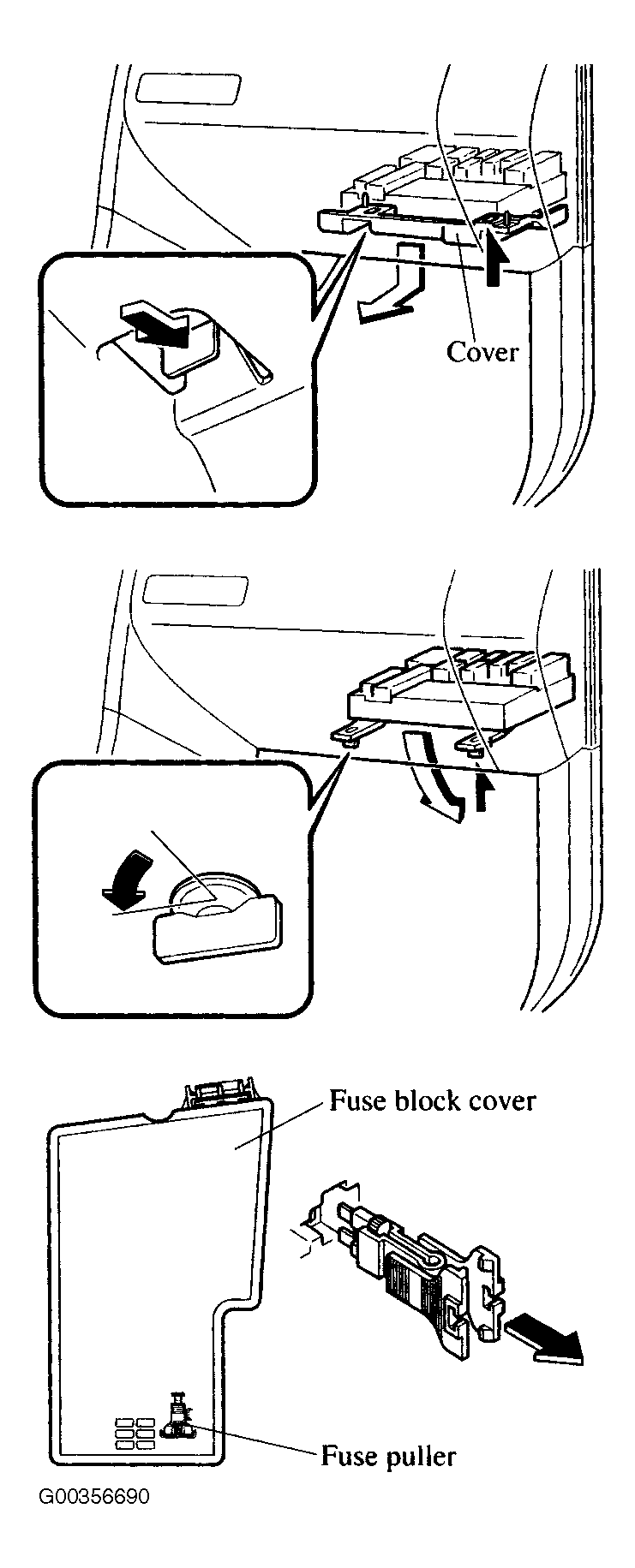

Fuse block is located under the glove box under the instrument panel. See Fig 1.
NOTE:
* Use designated fuses only.

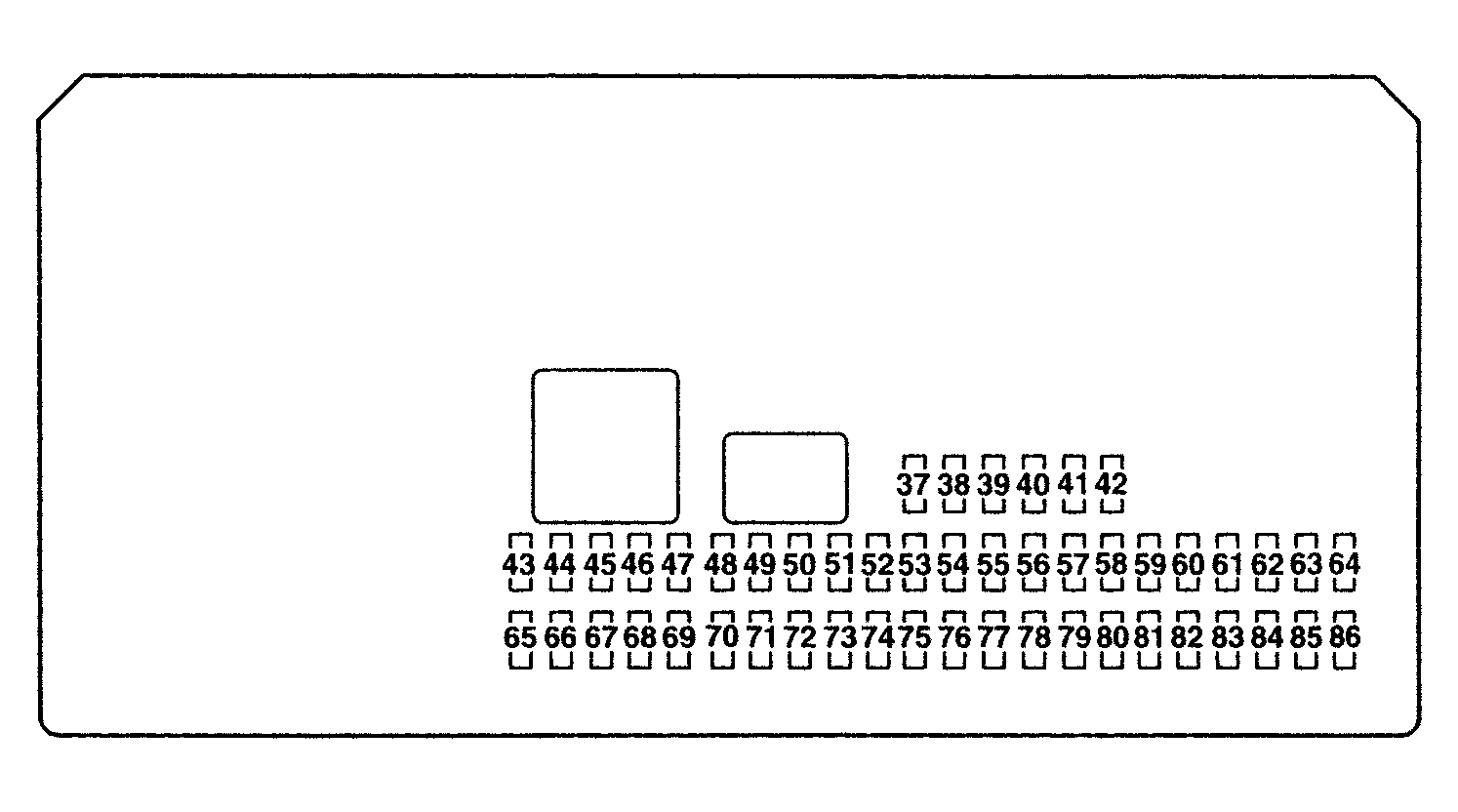

IDENTIFYING FUSES (PASSENGER COMPARTMENT)
| DESCRIPTION | FUSE RATING | CIRCUIT PROTECTED | |
|---|---|---|---|
| 37 | D/LOCKS | 15A | Power Door Locks |
| 38 | - | - | - |
| 39 | HEAD HIGH (L) | 10A | Head Light High Beam (LH) |
| 40 | HEAD HIGH (R) | 10A | Head Light High Beam (RH) |
| 41 | - | - | - |
| 42 | - | - | - |
| 43 | CIGAR | 15A | Cigarette Lighter |
| 44 | RADIO | 7.5A | Audio System |
| 45 | MIRROR | 10A | Power Control Mirror |
| 46 | TAIL R | 7.5A | License Plate Light Parking Light (RH) Tail Light (RH) |
| 47 | OBD | 10A | For Protection Of Various Circuits |
| 48 | - | - | - |
| 49 | TR/LOCK | 20A | - |
| 50 | CPU PWR | 15A | Control Unit |
| 51 | HAZARD | 10A | Hazard Warning Flasher Turn Signals |
| 52 | SUN ROOF | 20A | Moonroof * |
| 53 | WASHER | 20A | Front Washer Rear Window Wiper & Washer |
| 54 | - | - | - |
| 55 | P/WIND R | 30A | - |
| 56 | P/WIND L | 30A | - |
| 57 | ALARM | 7.5A | - |
| 58 | M/DEF | 7.5A | Mirror Defroster |
| 59 | - | - | - |
| 60 | HEAD LOW (R) | 15A | Head Light Low Beams (RH) Head Light Leveling * |
| 61 | HEAD LOW (L) | 15A | Head Light Low Beams (LH) |
| 62 | - | - | - |
| 63 | - | - | - |
| 64 | - | - | - |
| 65 | SAS | 10A | Supplemental Restraint System |
| 66 | METER | 10A | Immobilizer System Instrument Cluster Shift Lock System |
| 67 | IGNITION | 20A | ABS * EHPAS |
| 68 | WIPER | 15A | Windshield Wiper |
| 69 | ENGINE | 20A | For Protection Of Various Circuits |
| 70 | IG SIG | 10A | Auto Wiper * |
| 71 | SAS 2 | 7.5A | Supplemental Restraint System |
| 72 | - | - | - |
| 73 | - | - | - |
| 74 | SEAT WARM | 20A | - |
| 75 | D/LOCK 1 | 25A | Power Door Lock |
| 76 | A/C | 10A | Air Conditioner Heater Control Unit |
| 77 | P/WIND R | 30A | Power Windows (LH)* |
| 78 | P/WIND L | 30A | Power Windows (RH)* |
| 79 | BACK | 10A | Reverse Lights |
| 80 | SUN ROOF | 7.5A | Moonroof * |
| 81 | TAIL L | 7.5A | Tail Lights (LH) Parking Lights (LH) |
| 82 | ILLUMI | 7.5A | Illumination |
| 83 | - | - | - |
| 84 | - | - | - |
| 85 | - | - | - |
| 86 | - | - | - |
| * Some models. Refer to wiring diagrams for any PJB related diagnosis. See SYSTEM WIRING DIAGRAMS . |
|||
