Passenger Junction Box (PJB) Removal/Installation: Notes
- When replacing the PJB, perform the following:
- PJB configuration (See PASSENGER JUNCTION BOX (PJB) CONFIGURATION )
- Disconnect the negative battery cable.

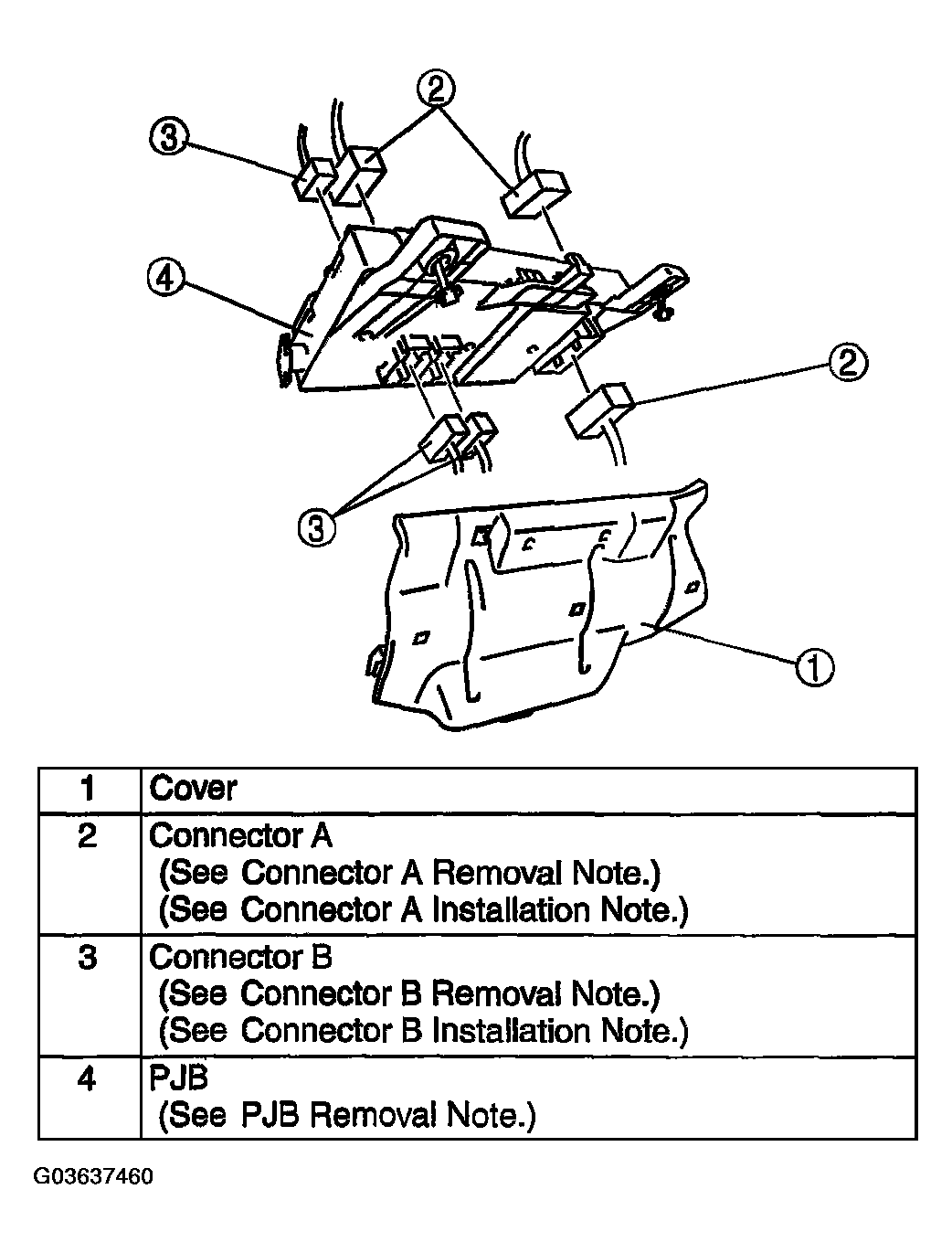

- Remove in the order indicated in the figure.
- Install in the reverse order of removal.
