Rear Seat Disassembly/Assembly

  1. Disassemble in the order indicated in the figure.
  2. Assemble in the reverse order of disassembly.

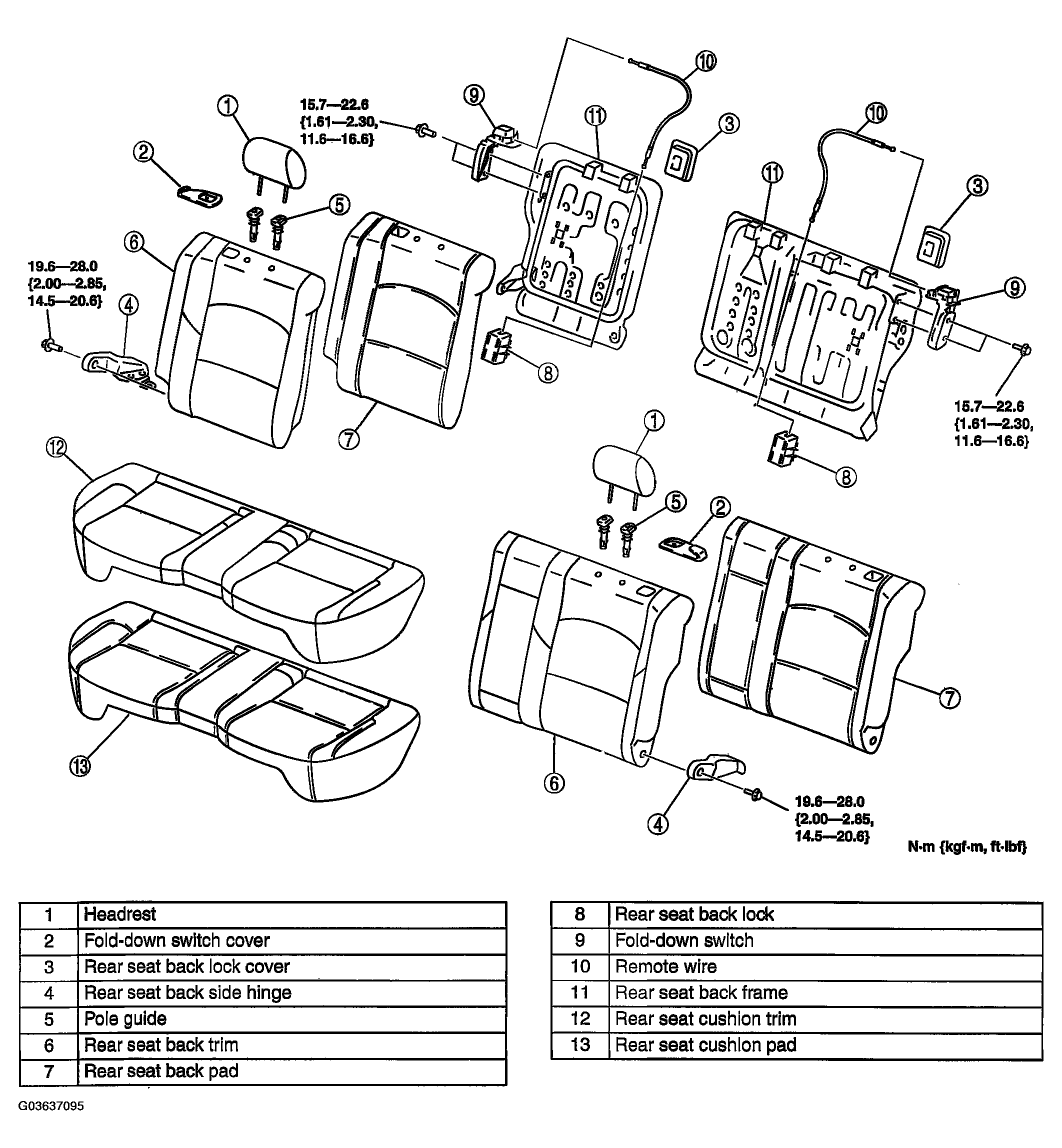

    Fig 1: Rear Seat Disassembly/Assembly & Tightening Specifications
    G03637095Courtesy of MAZDA MOTORS CORP.
