Dashboard Center Panel Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION  )
  3. Remove the screws.
  4. Pull the dashboard center panel outward and detach clips A and locator pins B.
  5. Disconnect the hazard warning switch connector.
  6. Remove the dashboard center panel.
  7. Install in the reverse order of removal.

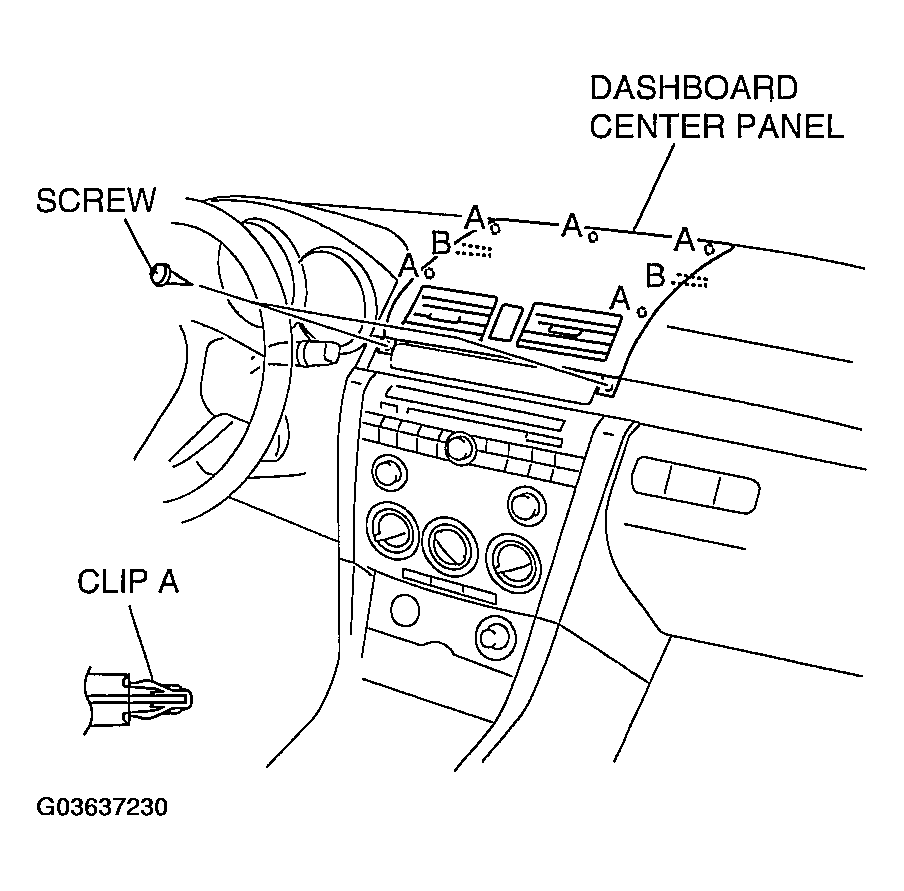

    Fig 1: Dashboard Center Panel Removal/Installation
    G03637230Courtesy of MAZDA MOTORS CORP.
