Console Disassembly/Assembly

  1. Disassemble in the order indicated in the figure.
  2. Assemble in the reverse order of disassembly.

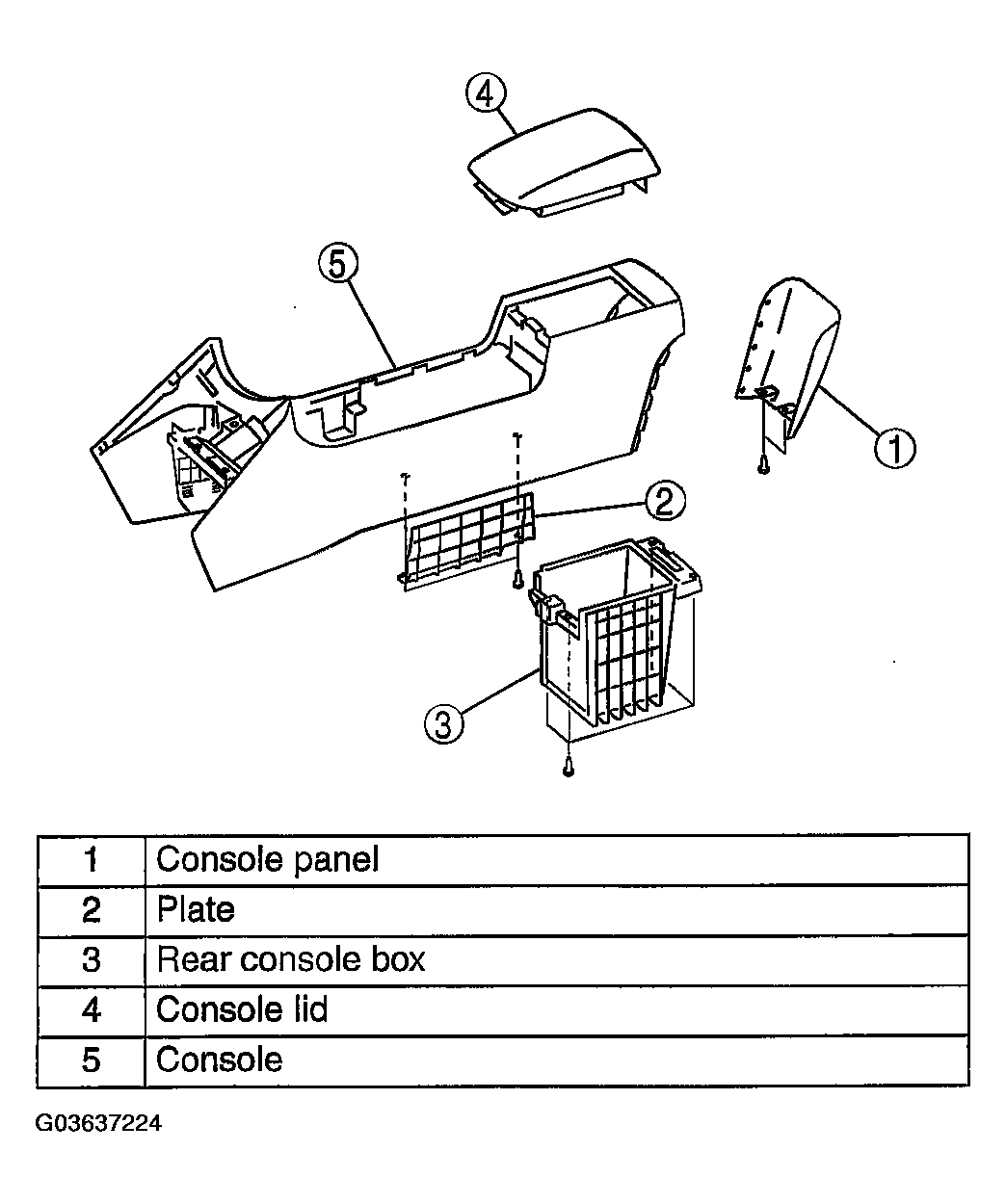

    3. Fig 1: Console Disassembly/Assembly
    G03637224Courtesy of MAZDA MOTORS CORP.
