Assist Handle Removal/Installation

  1. Insert a flathead screwdriver into the assist handle notch and remove the cover.

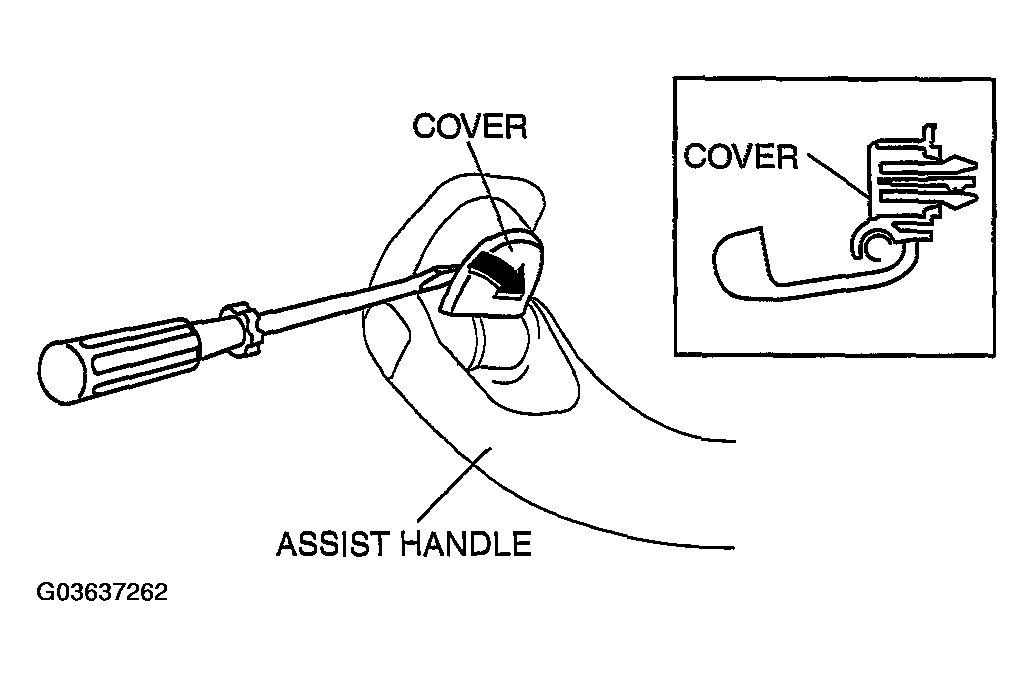

    Fig 1: Removing Assist Handle Covers
    G03637262Courtesy of MAZDA MOTORS CORP.
  2. Pull the assist handle outward and remove it.
  3. Install in the reverse order of removal.

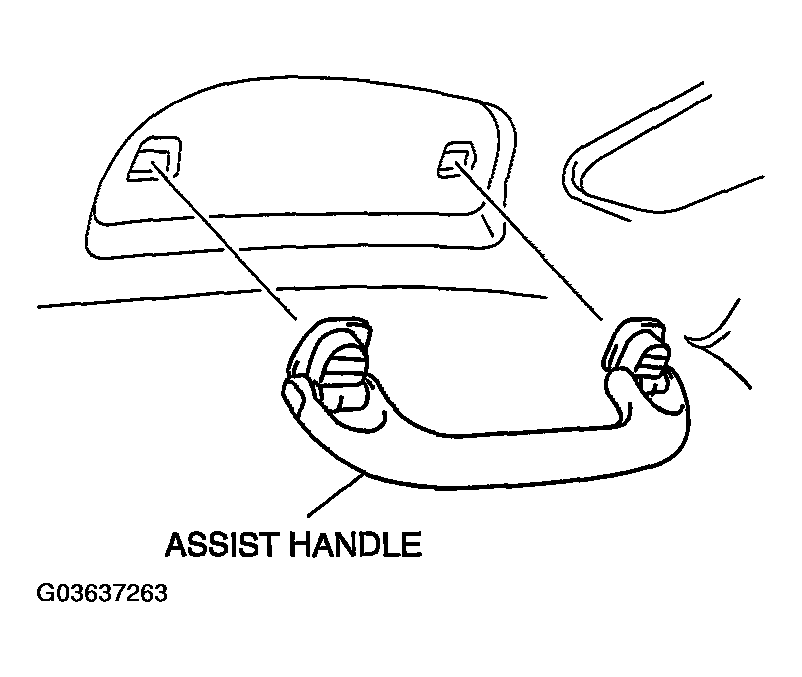

    Fig 2: Assist Handle Removal/Installation
    G03637263Courtesy of MAZDA MOTORS CORP.
