Trunk Lid Lock Striker Removal/Installation

  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Detach the trunk lid opener cable.
  3. Remove the bolts, then remove the trunk lid striker.
  4. Install in the reverse order of removal.

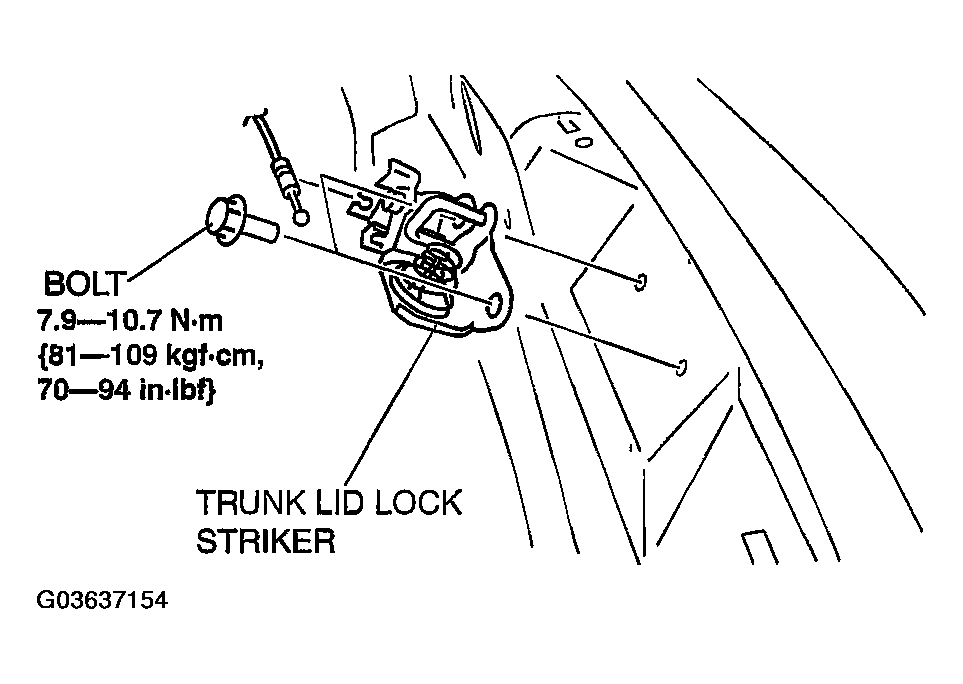

    5. Fig 1: Trunk Lid Lock Striker Removal/Installation & Tightening Specifications
    G03637154Courtesy of MAZDA MOTORS CORP.
  5. Adjust the trunk lid. (See TRUNK LID ADJUSTMENT .)
