Rear Door Latch Switch Inspection

When inspecting the latch, press the latch lever using a flathead screwdriver or a similar tool.

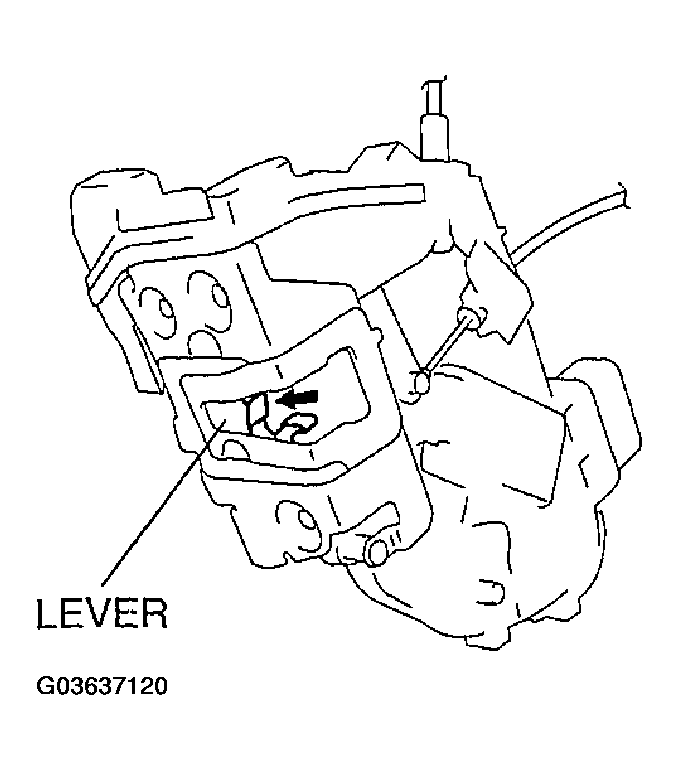

Fig 1: Identifying Rear Door Latch Lever
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity between the rear door latch switch terminals.
- If not as specified, replace the rear door latch and lock actuator.

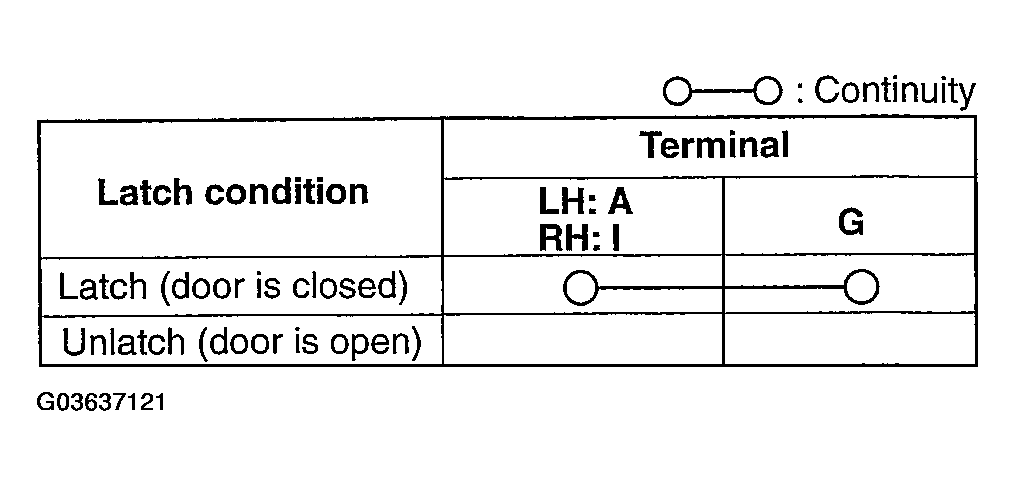

Fig 2: Rear Door Latch Switch Continuity Specifications
Courtesy of MAZDA MOTORS CORP.

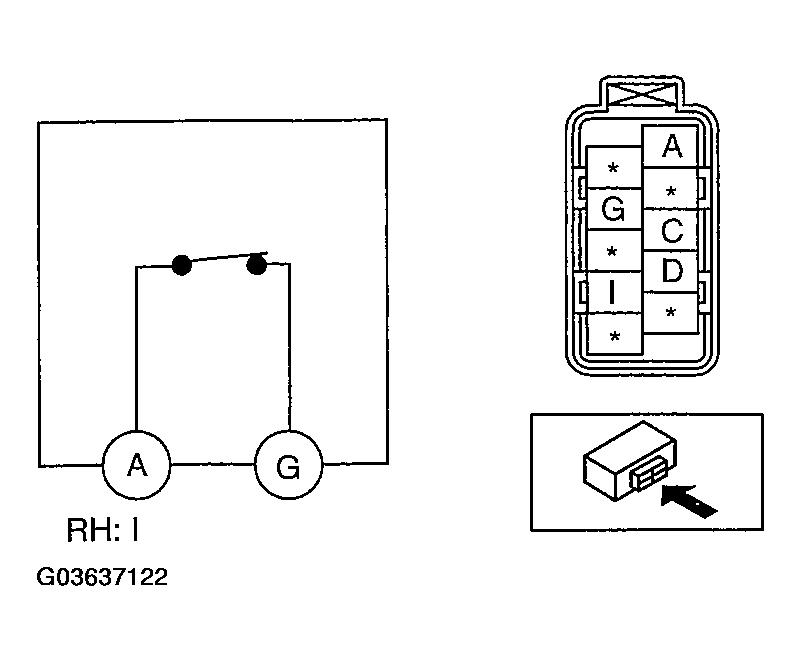

Fig 3: Identifying Rear Door Latch Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
