Quick Diagnosis Chart

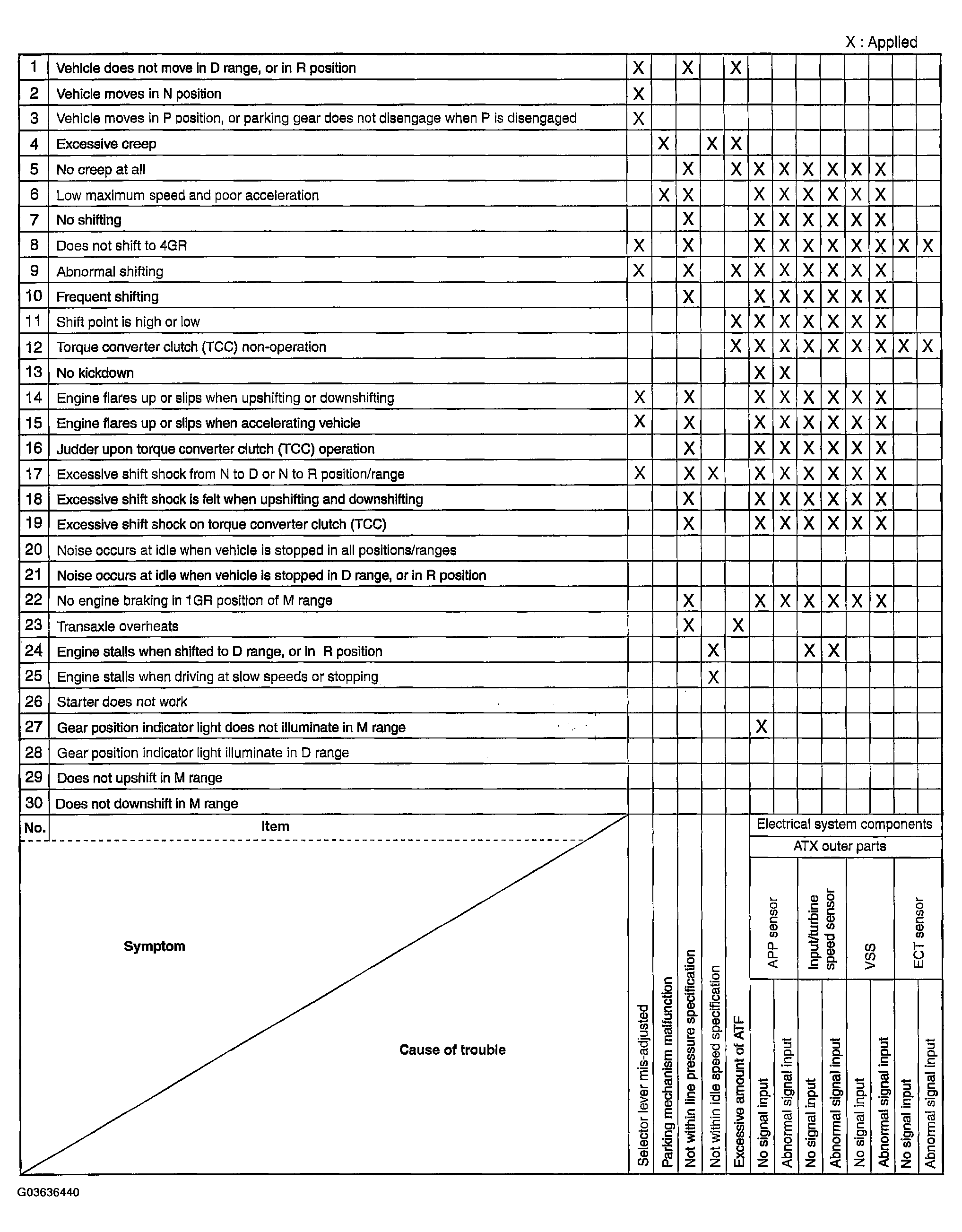

Fig 1: Quick Diagnosis Chart (1 Of 3)

G03636440

Courtesy of MAZDA MOTORS CORP.

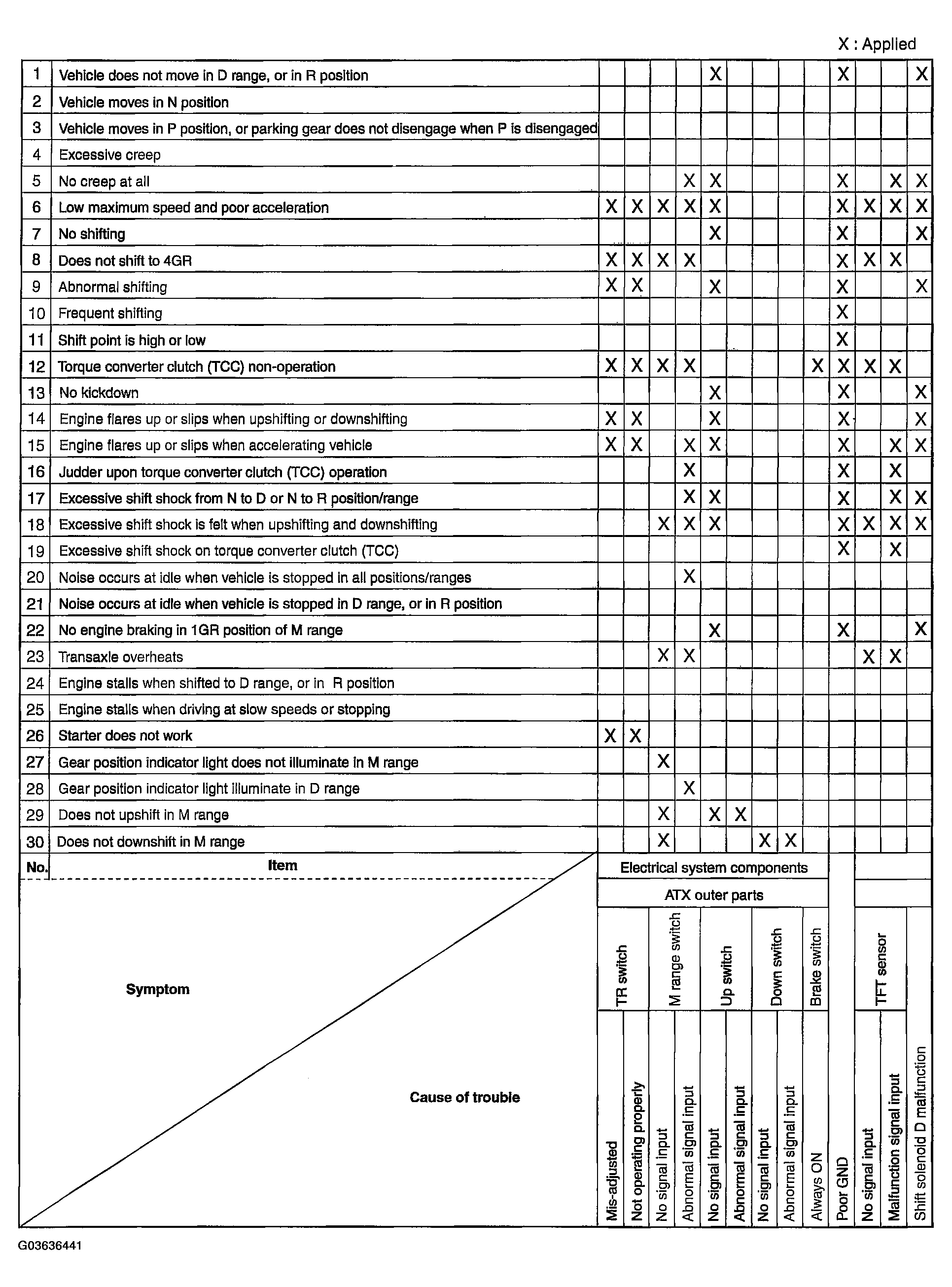

Fig 2: Quick Diagnosis Chart (2 Of 3)

G03636441

Courtesy of MAZDA MOTORS CORP.

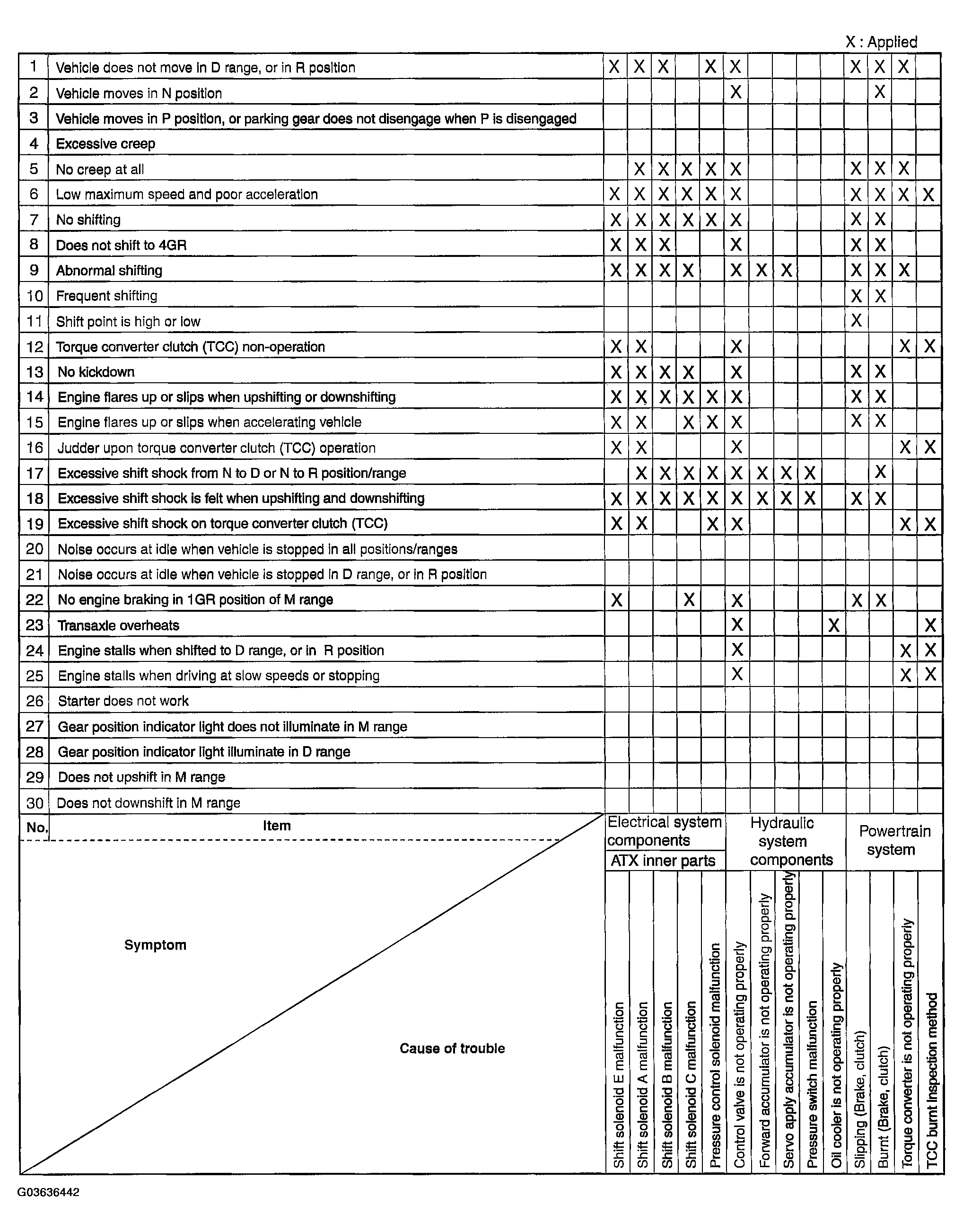

Fig 3: Quick Diagnosis Chart (3 Of 3)

G03636442

Courtesy of MAZDA MOTORS CORP.
