California Emission Regulation Applicable Model

Fig 1: Automatic Transaxle Control System Wiring Diagram - California (1 Of 2)
G03636435Courtesy of MAZDA MOTORS CORP.

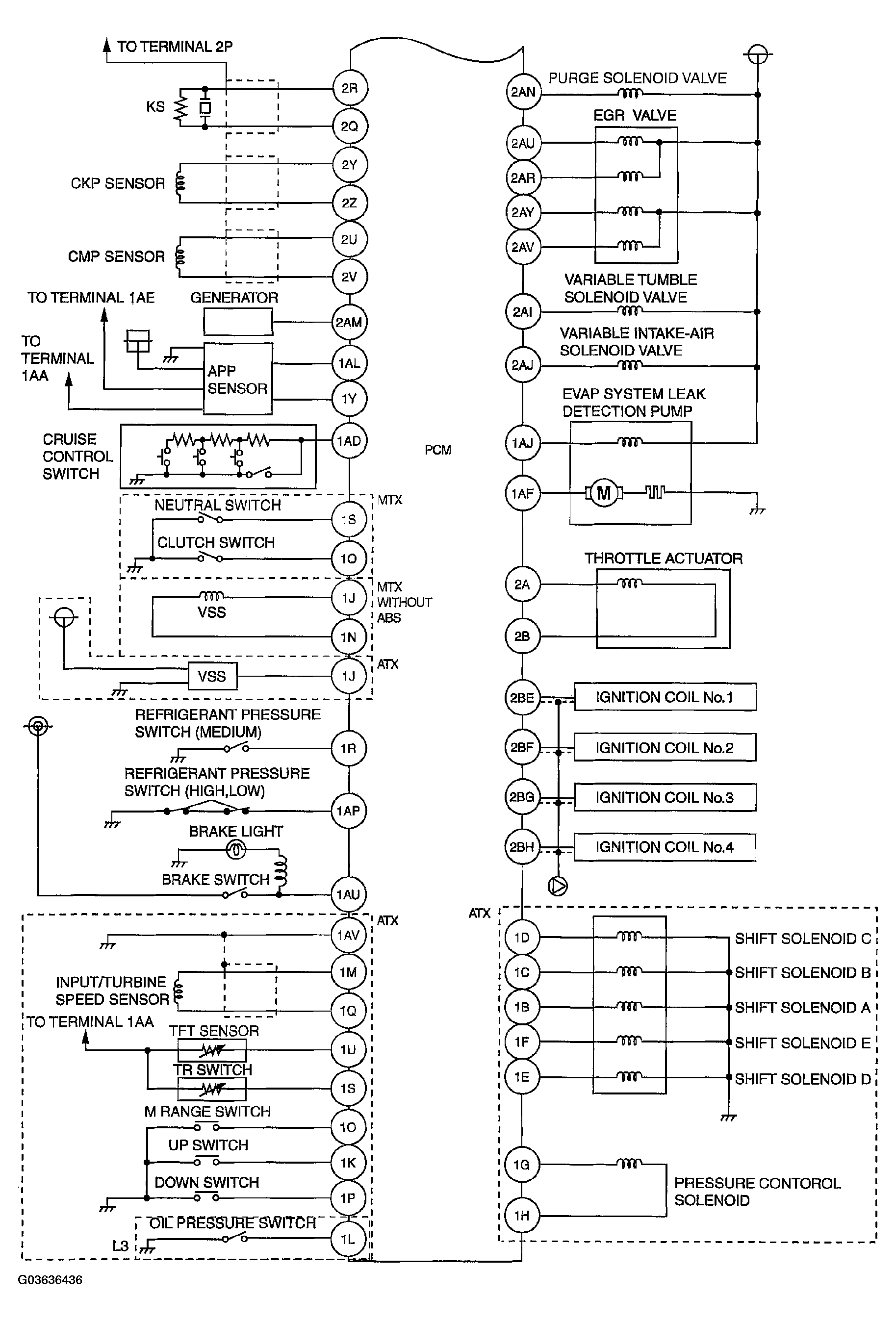

Fig 2: Automatic Transaxle Control System Wiring Diagram - California (2 Of 2)
G03636436Courtesy of MAZDA MOTORS CORP.
