Selector Lever Component Installation Note

  1. Insert the location pin of selector lever component to the hole of the floor.
  2. Tighten the selector lever component installation bolts.

    Tightening torque

    7.8-10.8 N.m

    {80-110 kgf.cm, 69.5-95.4 in.lbf}

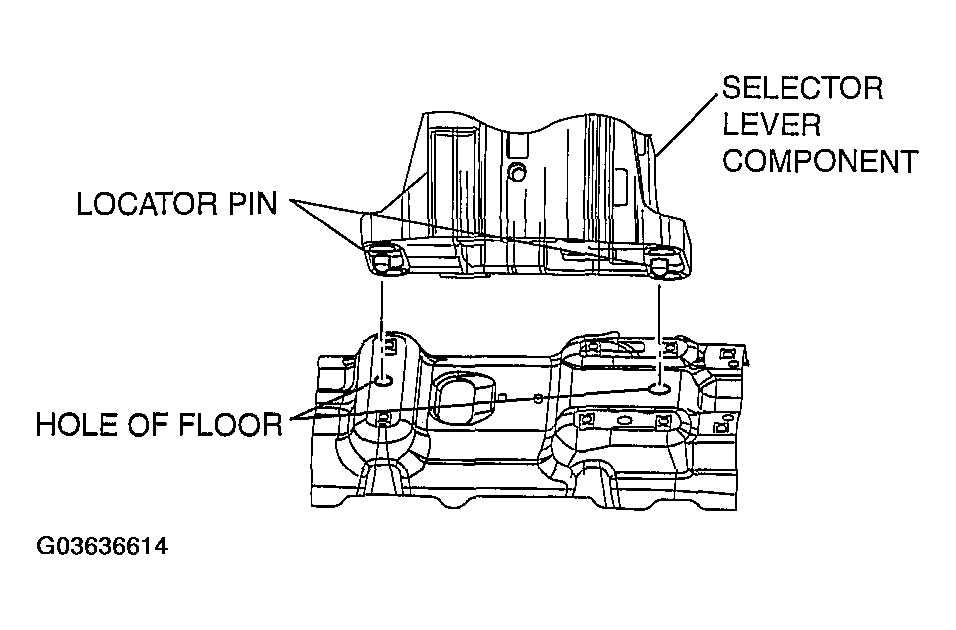

    Fig 1: Installing Selector Lever Component
    G03636614Courtesy of MAZDA MOTORS CORP.
