Selector Lever Component Inspection

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable.
  3. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  4. Disconnect the selector lever component connector.
  5. Verify that the continuity is as indicated in the figures.
    Fig 1: Identifying Selector Lever Component Connector Terminals
    G03636608Courtesy of MAZDA MOTORS CORP.

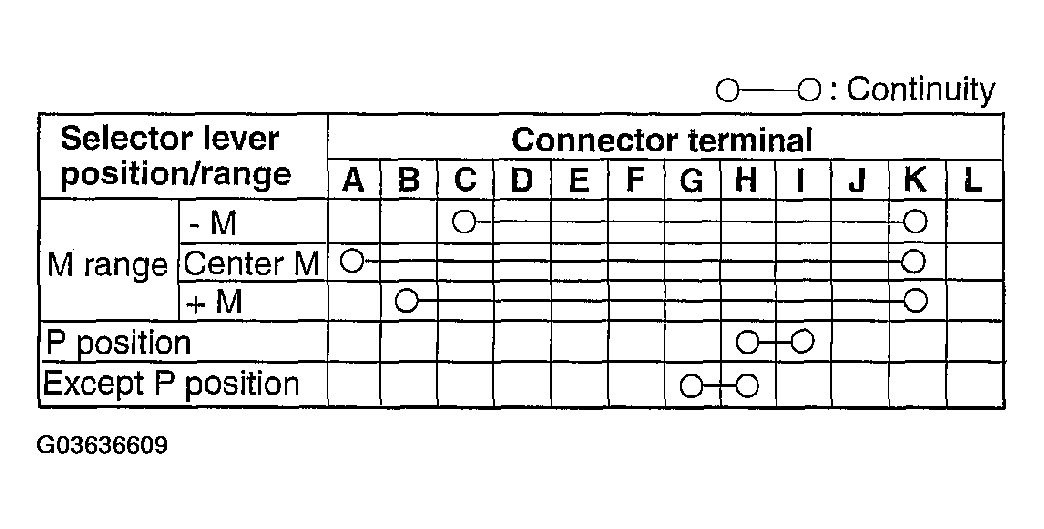

    Fig 2: Selector Lever Position/Range Continuity Specifications
    G03636609Courtesy of MAZDA MOTORS CORP.
