P/S Angle Sensor Assembly Note

  1. Assemble the P/S angle sensor in the order shown in the figure.

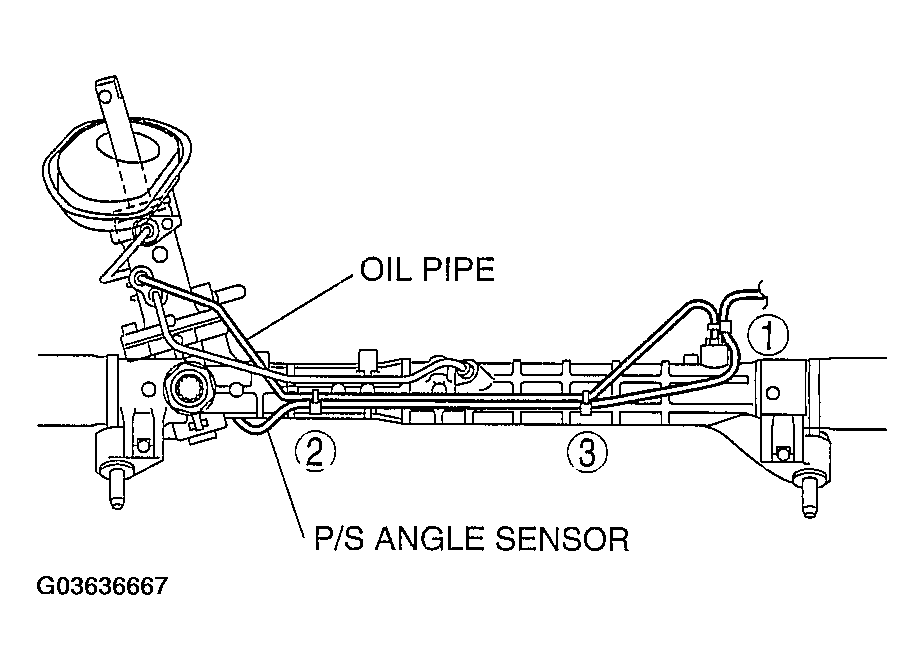

    Fig 1: Assembling P/S Angle Sensor
    G03636667Courtesy of MAZDA MOTORS CORP.
