Rear Buckle Removal/Installation

  1. Remove the rear seat cushion. (See REAR SEAT REMOVAL/INSTALLATION )
  2. Remove in the order indicated in the figure.
  3. Install in the reverse order of removal.

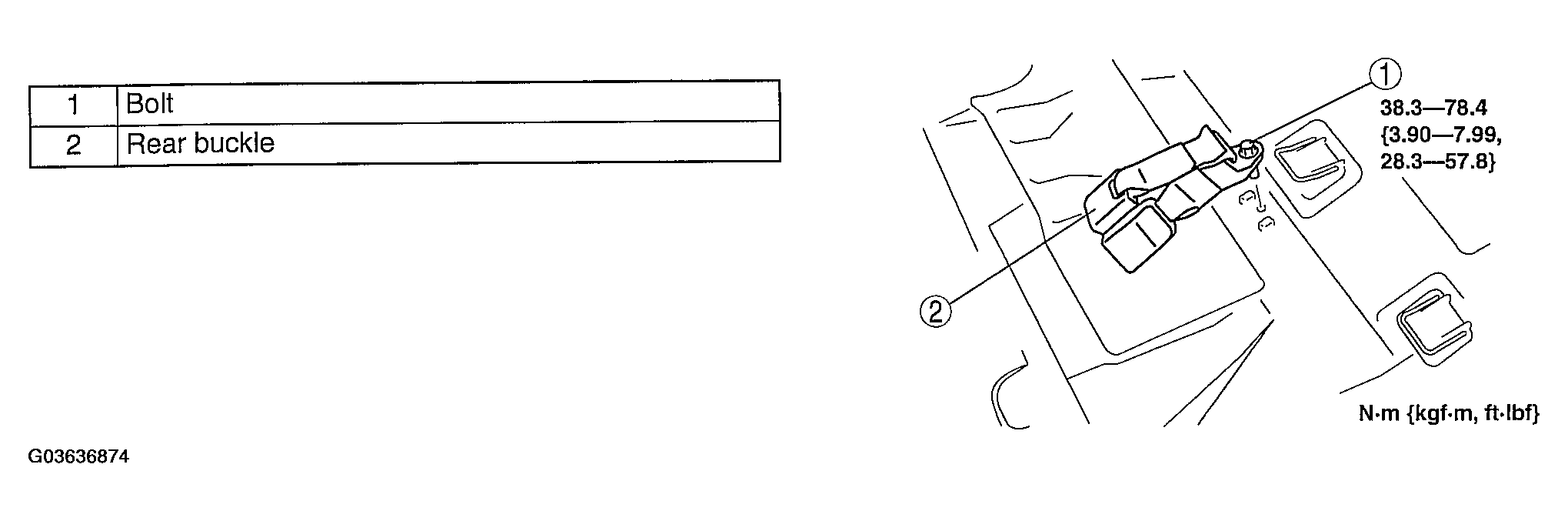

    Fig 1: Rear Buckle Removal/Installation & Tightening Specifications
    G03636874Courtesy of MAZDA MOTORS CORP.
