Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belt System
>>
Location Index
Location Index

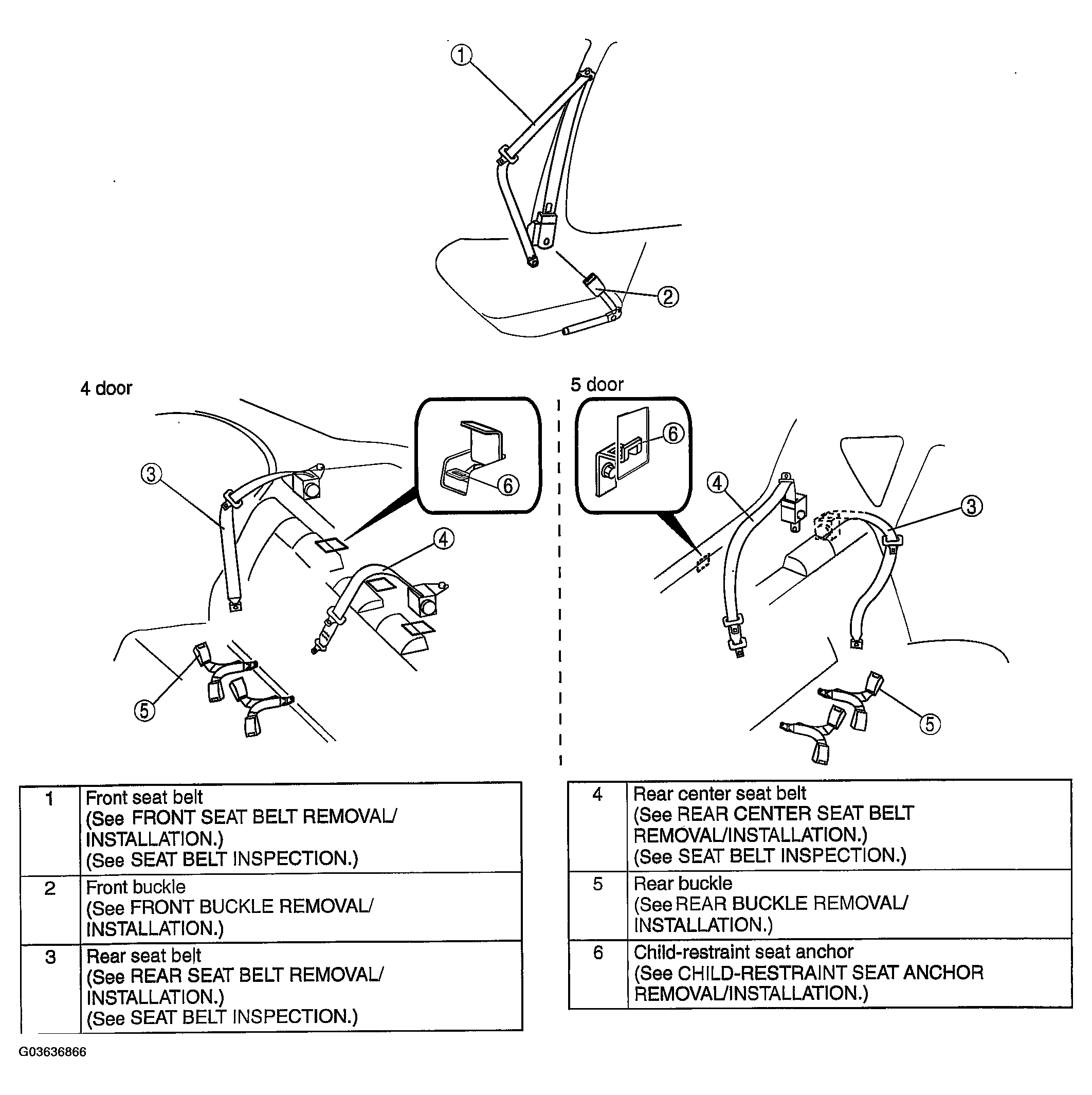

Fig 1: Identifying Seat Belt Component Locations
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
