Charcoal Canister Removal/Installation: Notes

  1. Remove the charcoal canister protector.

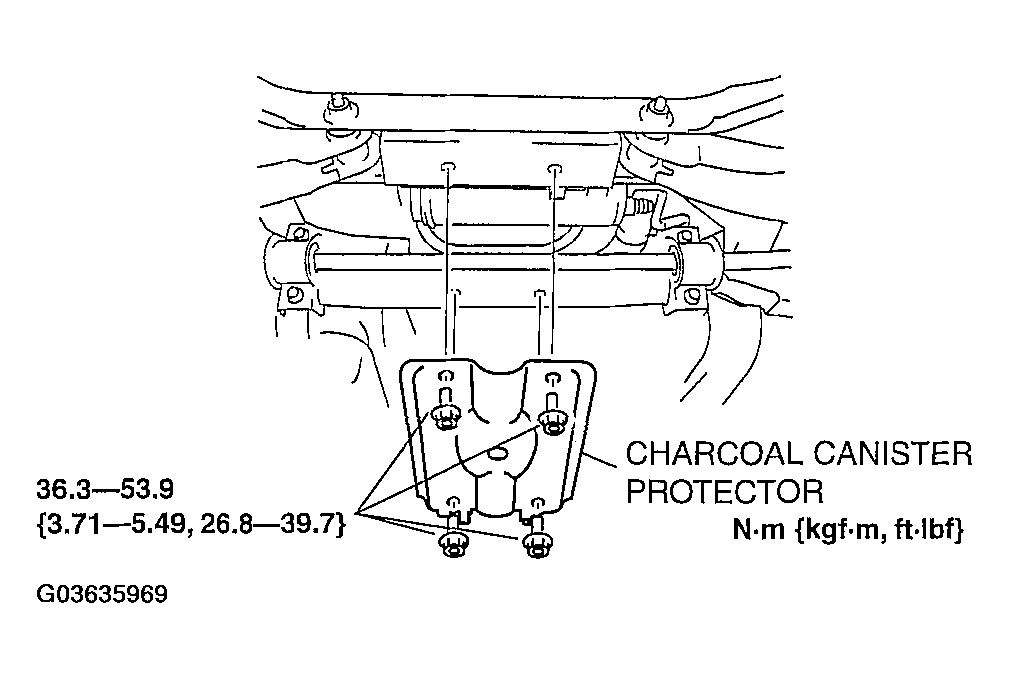

    Fig 1: Removing Charcoal Canister Protector
    G03635969Courtesy of MAZDA MOTORS CORP.
  2. Remove in the order indicated in the figure.

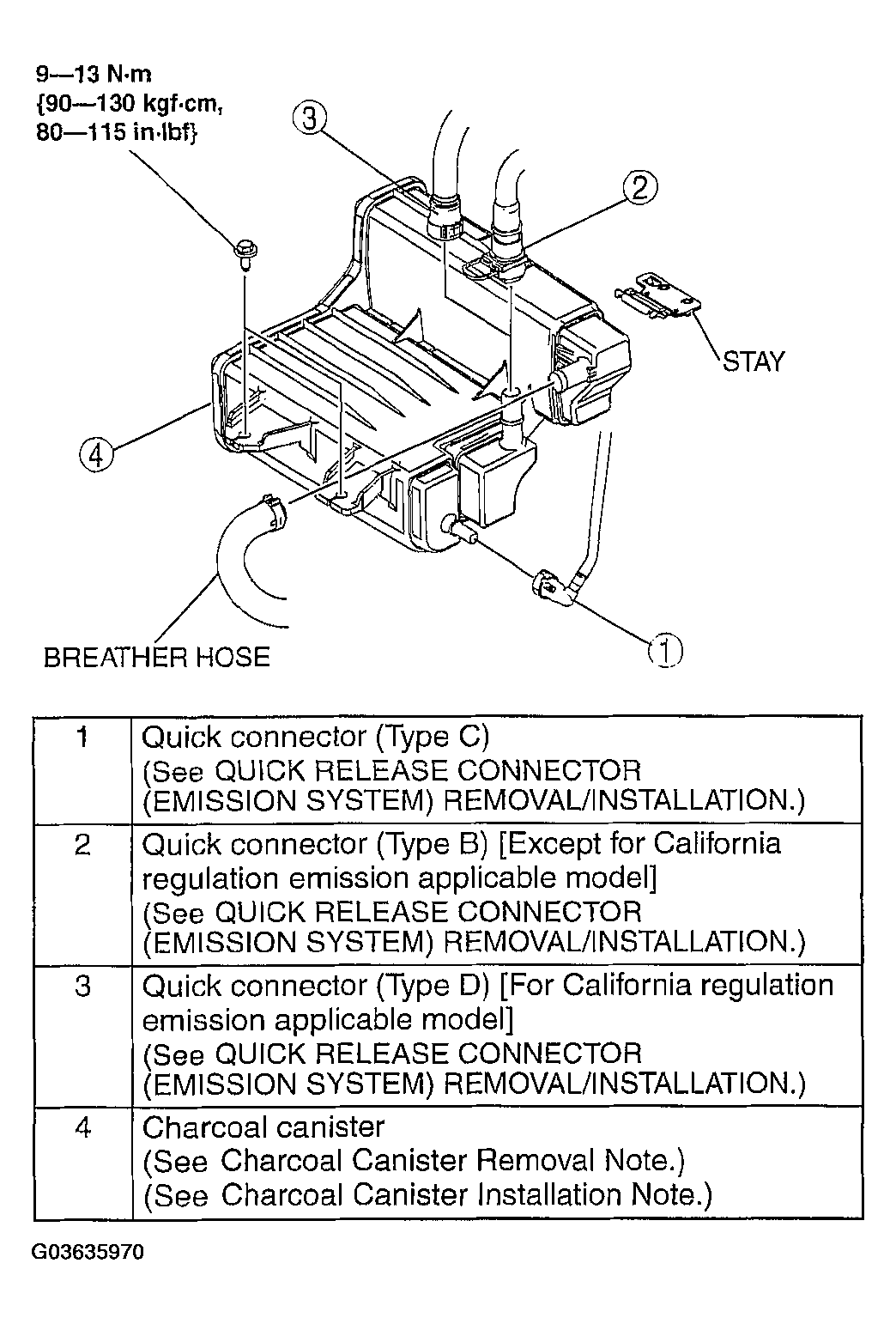

    Fig 2: Identifying Removal Order Of Charcoal Canister Protector
    G03635970Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Verify that the rear wheel alignment is within the specification. (See REAR WHEEL ALIGNMENT .)
