Air Filter Inspection

  1. Remove the air filter. (See AIR FILTER REMOVAL/INSTALLATION  )
  2. Blow from port A and verify that there is airflow from port B.
    • If not as specified, replace the air filter.
  3. Blow from port B and verify that there is airflow from port A.

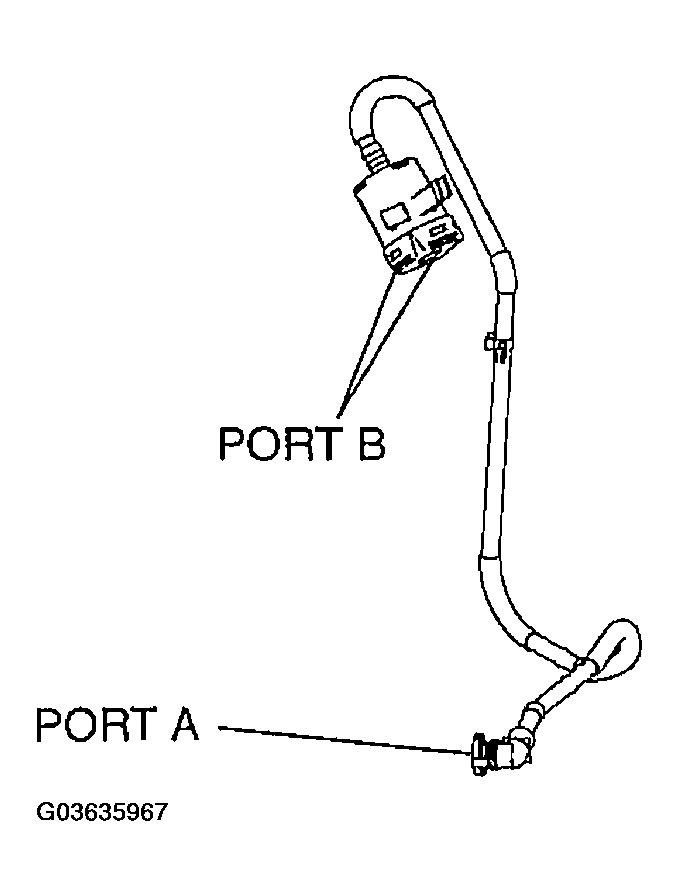

    Fig 1: Identifying Air Filter Ports A & B
    G03635967Courtesy of MAZDA MOTORS CORP.
