Starter Removal/Installation

WARNING:
  • When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable.
  3. Remove the under cover.
  4. Remove the clutch release cylinder with the pipe still connected. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the figure.

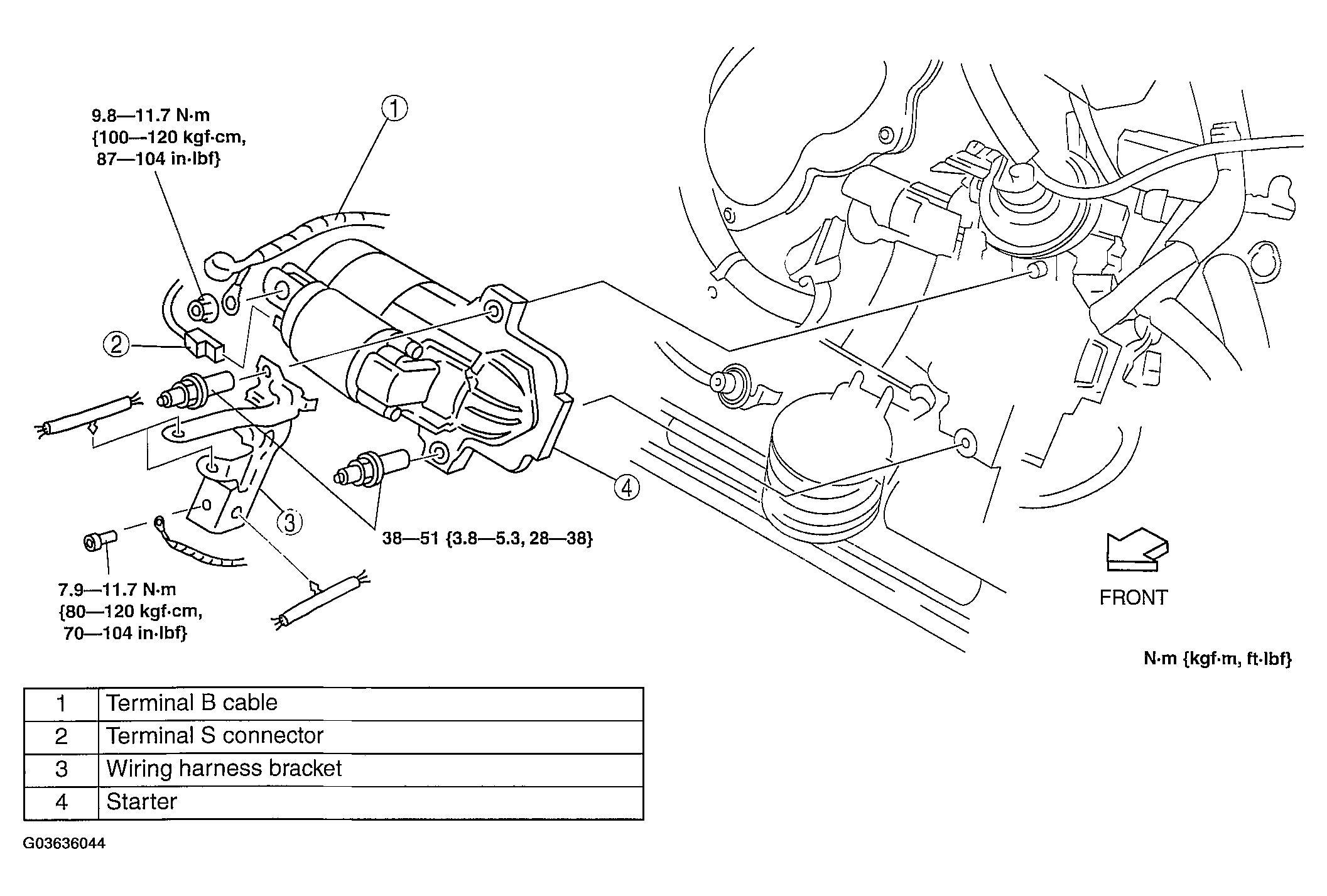

    Fig 1: Identifying Starter Removal/Installation
    G03636044Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
