Instrument Cluster Disassembly/Assembly

CAUTION:
  • Do not drop the instrument cluster or damage the printed board. This will lead to a system malfunction.
  1. Disassemble in the order indicated in the figure.
  2. Assemble in the reverse order of disassembly.

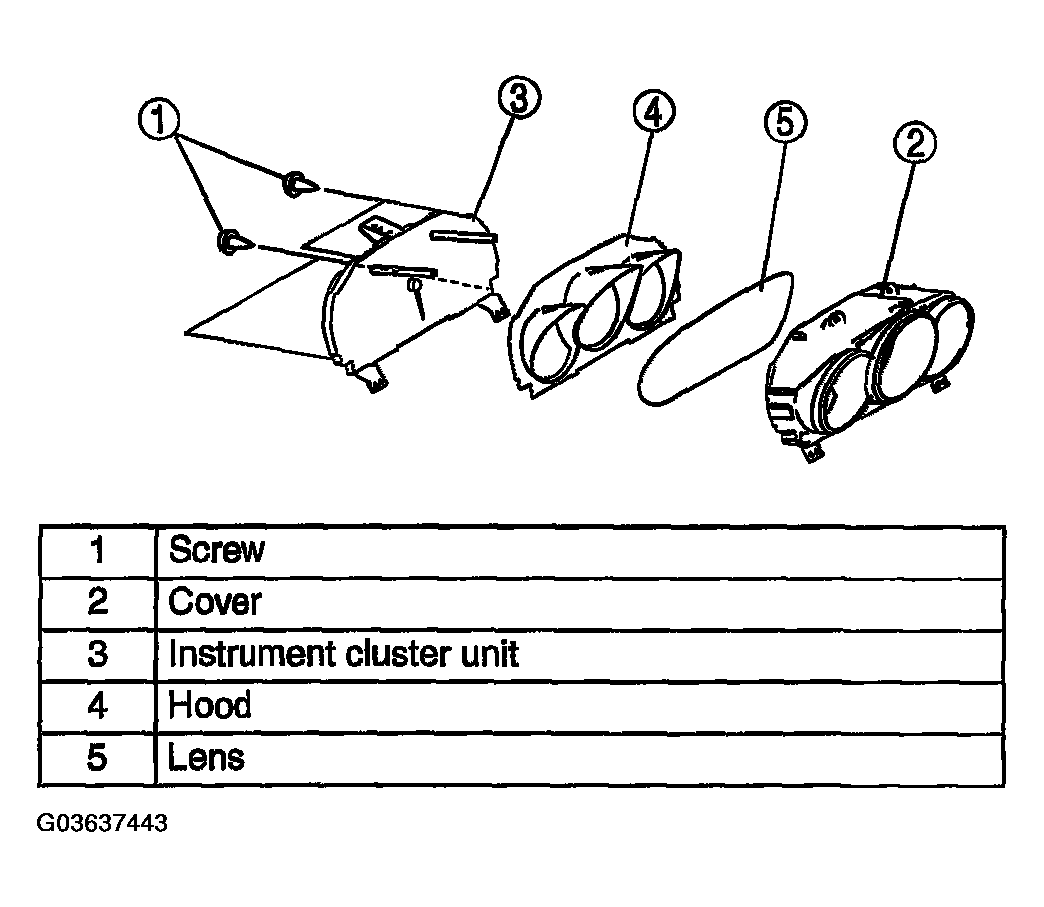

    3. Fig 1: Instrument Cluster Disassembly/Assembly
    G03637443Courtesy of MAZDA MOTORS CORP.
