Home >> Mazda >> 2005 >> 3 SP23, 4D Hatchback, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> EHPAS Control Module & P/S Angle Sensor Connector End View

EHPAS Control Module & P/S Angle Sensor Connector End View

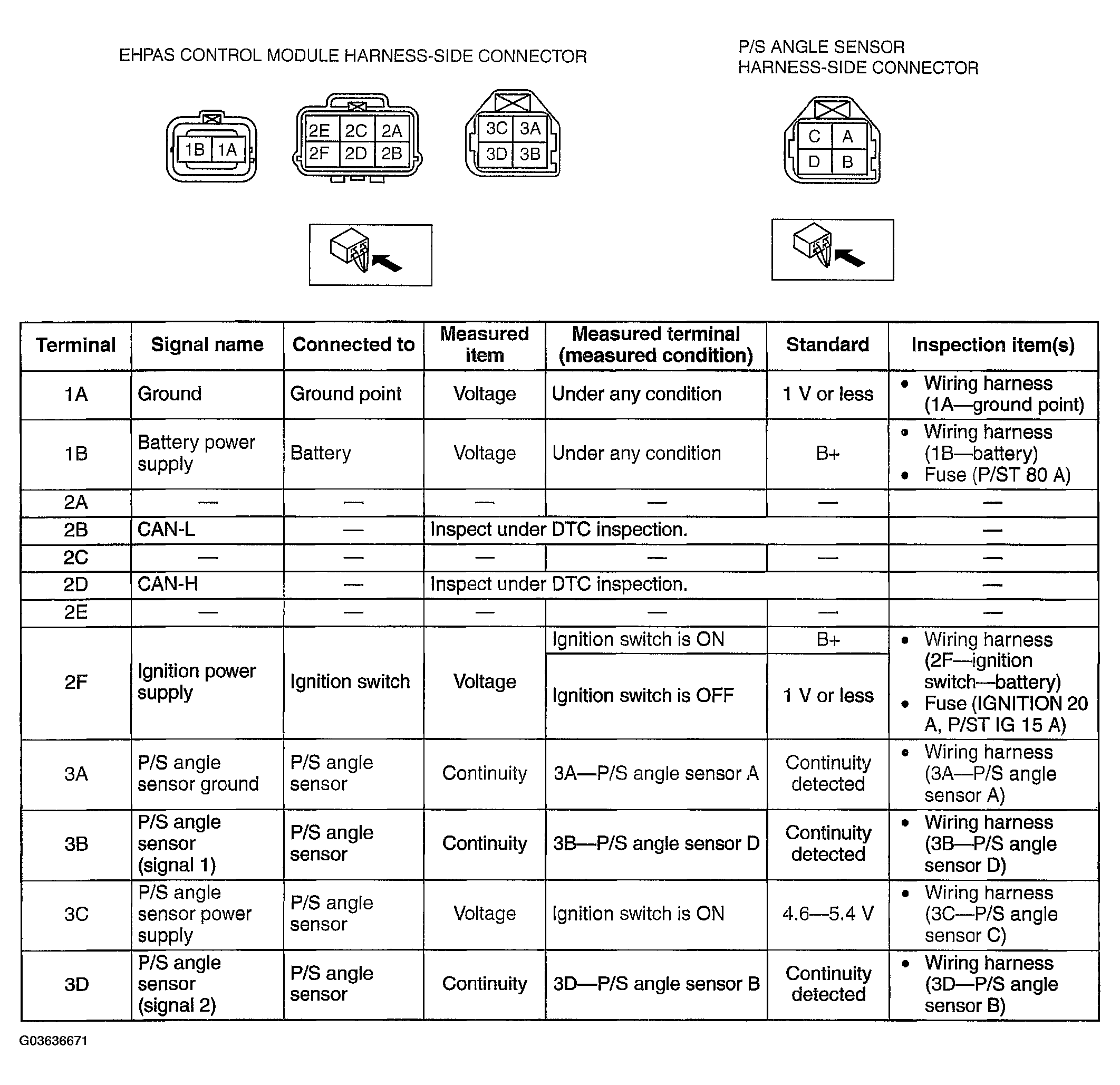

Fig 1: EHPAS Control Module & P/S Angle Sensor Connector End View
G03636671Courtesy of MAZDA MOTORS CORP.
