Clock Spring Connector End View

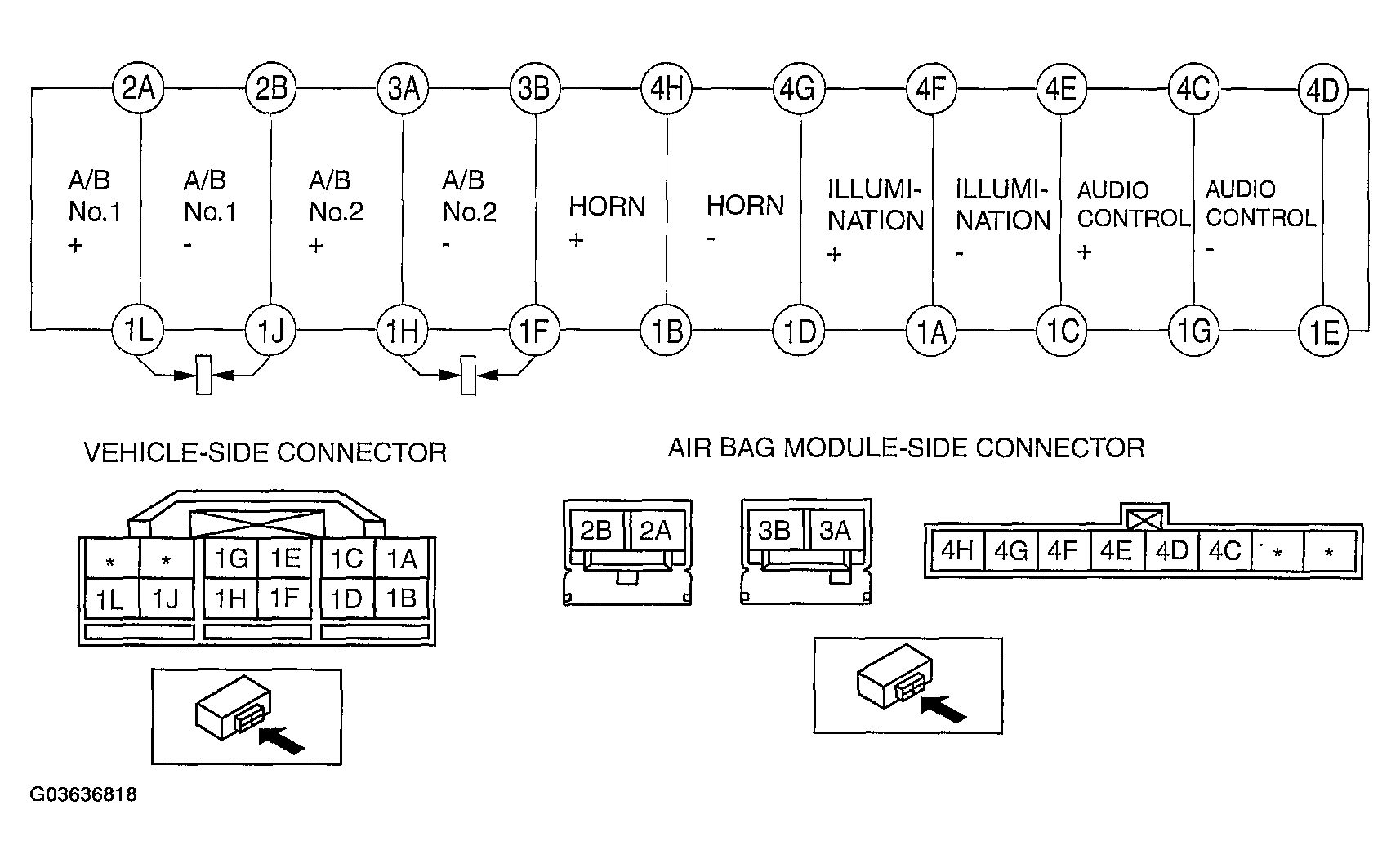

Fig 1: Clock Spring Connector End View

G03636818

Courtesy of MAZDA MOTORS CORP.
