Climate Control Unit Connector End View

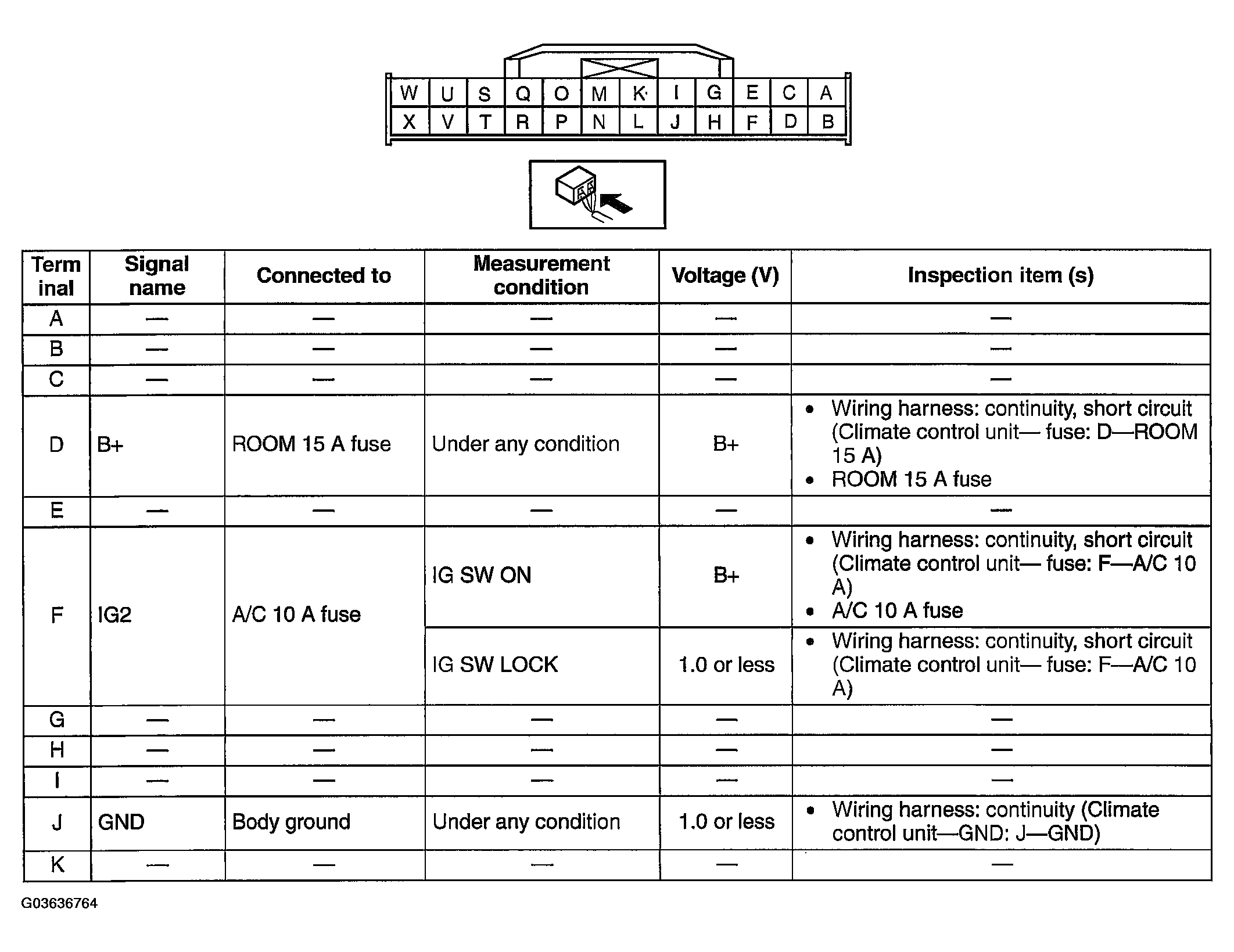

Fig 1: Climate Control Unit Connector End View)

G03636764

Courtesy of MAZDA MOTORS CORP.
