Symptom Troubleshooting [Brake System)
>>
System Wiring Diagram
System Wiring Diagram

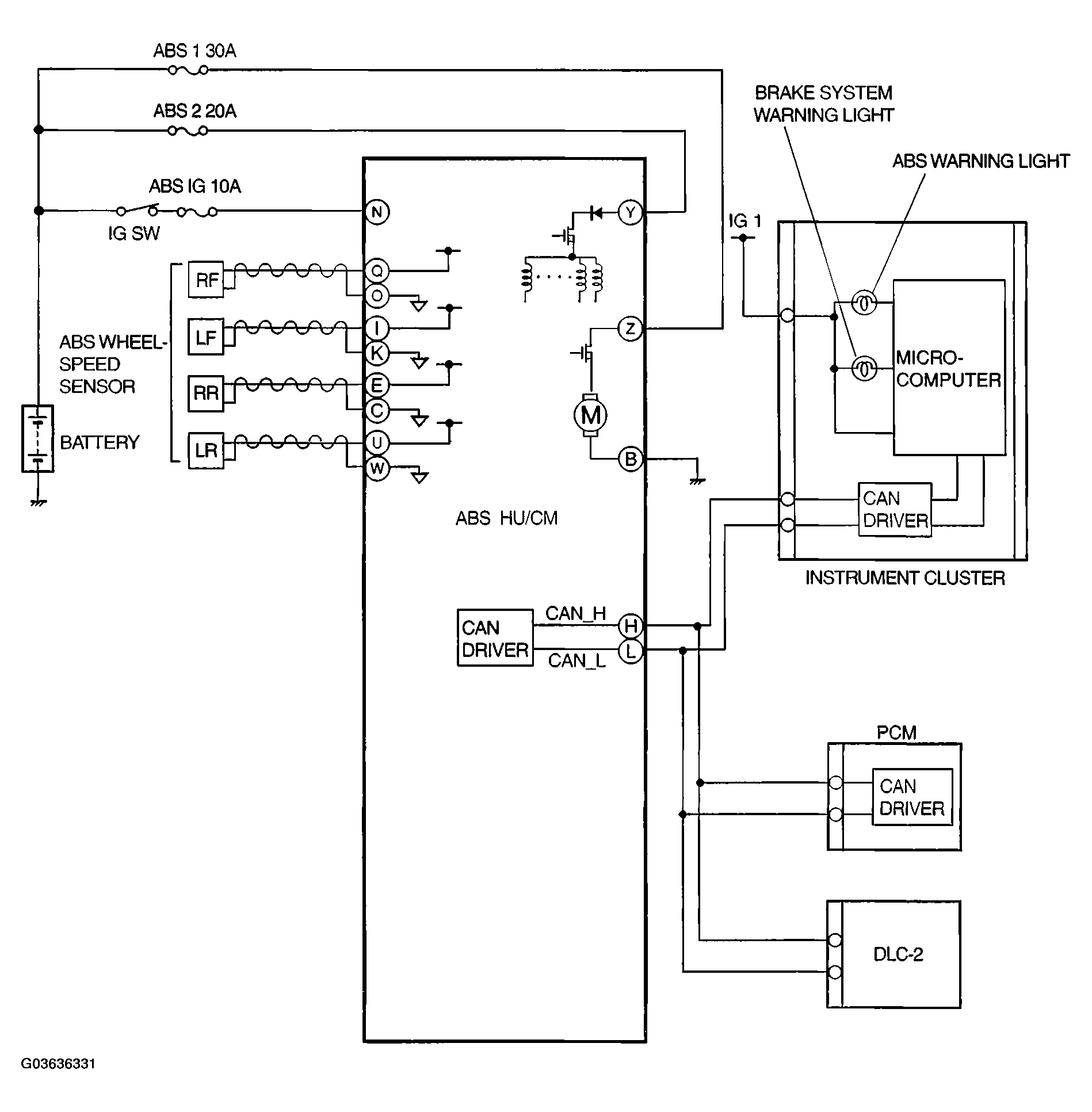

Fig 1: System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
