Symptom Troubleshooting
- Verify the symptoms, and perform troubleshooting according to the appropriate number.

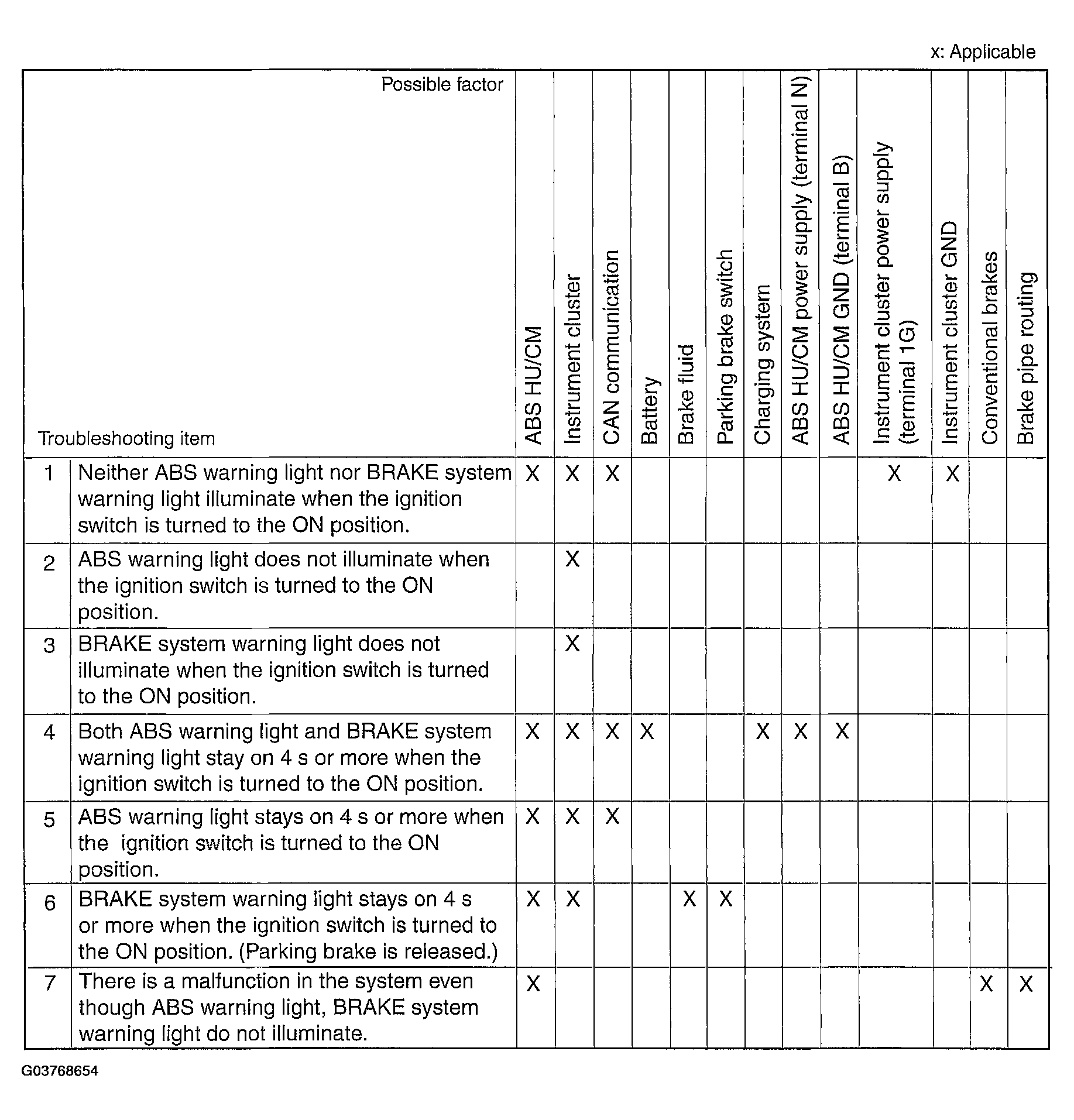

SYMPTOM TROUBLESHOOTING
| No. | Symptom |
|---|---|
| 1 | Neither ABS warning light nor BRAKE system warning light illuminate when the ignition switch is turned to the ON position. |
| 2 | ABS warning light does not illuminate when the ignition switch is turned to the ON position. |
| 3 | BRAKE system warning light does not illuminate when the ignition switch is turned to the ON position. |
| 4 | Both ABS warning light and BRAKE system warning light stay on 4 s or more when the ignition switch is turned to the ON position. |
| 5 | ABS warning light stays on 4 s or more when the ignition switch is turned to the ON position. |
| 6 | BRAKE system warning light stays on 4 s or more when the ignition switch is turned to the ON position. (Parking brake is released.) |
| 7 | There is a malfunction in the system even through ABS warning light, BRAKE system warning light, do not illuminate. |
