Connector terminal inspection method

  1. Inspect the connection of each female terminal.
  2. Insert the male terminal to the female terminal and Inspect the female terminal for looseness.

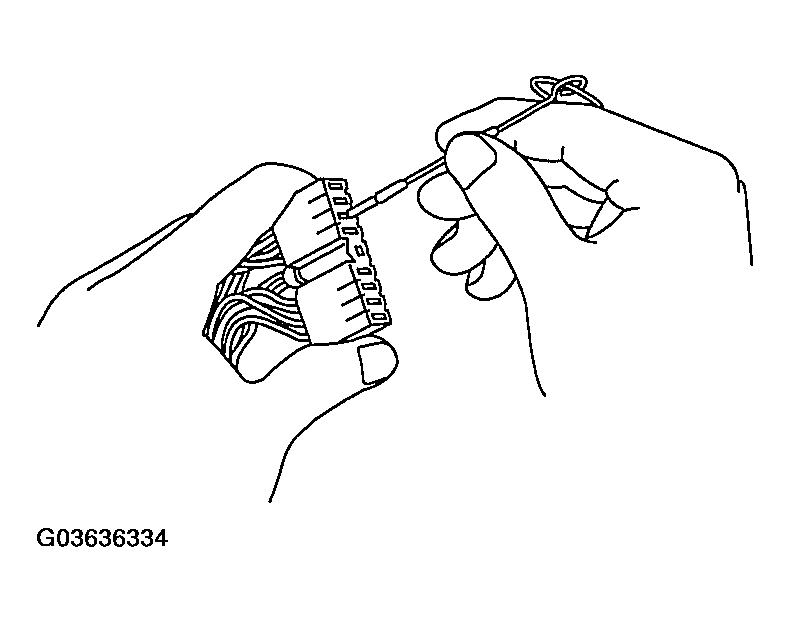

    Fig 1: Inspecting Connector Terminals
    G03636334Courtesy of MAZDA MOTORS CORP.
