Connector Installation Note
Connector Installation Note
After connecting the connector, verify that the connector cover is completely pushed in.

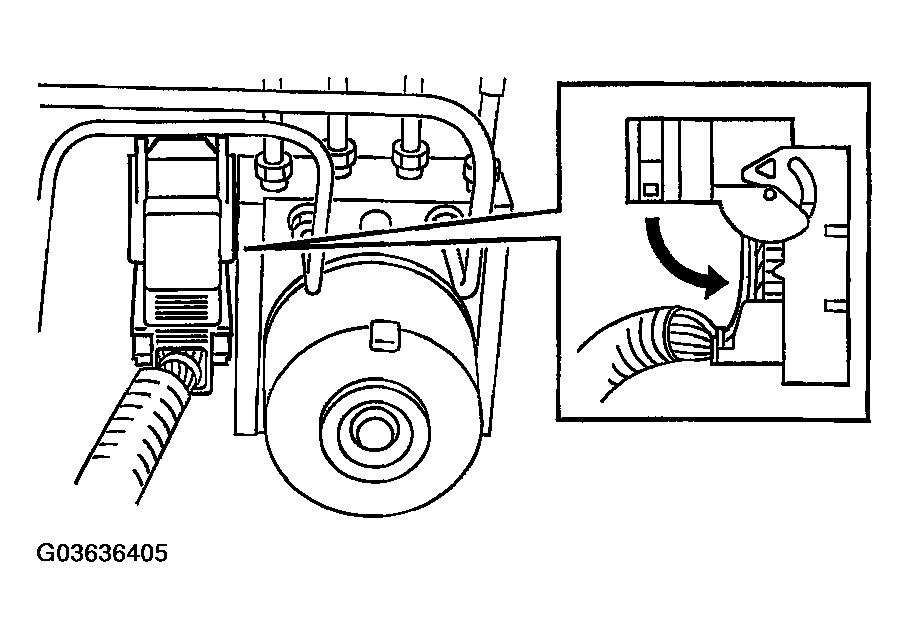

Fig 1: Connecting ABS HU/CM Connector
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
