Front Seat Disassembly/Assembly

WARNING:
  • Handling the front seat (side air bag, seat weight sensor) improperly can accidentally deploy the side air bag, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See SERVICE WARNINGS , SERVICE CAUTIONS .)
CAUTION:
  • For vehicles with the two-step deployment air bag system, if any of the following work is performed, perform the seat weight sensor calibration using the WDS or equivalent. (See SEAT WEIGHT SENSOR CALIBRATION .)
    • Replacement with a new seat weight sensor
    • Replacement with a new seat weight sensor control module
    • Replacement with new passenger-side seat parts
    • Disassembly of the passenger-side seat
  • For vehicles with the two-step deployment air bag system, if any of the following work is performed, perform the seat weight sensor inspection using the WDS or equivalent. (See SEAT WEIGHT SENSOR INSPECTION .)
    • Removal of the passenger-side seat
    • Loosening and retightening of passenger's seat fixing bolts
  1. Disassemble in the order indicated in Fig 1 and/or Fig 2 .
  2. Assemble in the reverse order of disassembly.

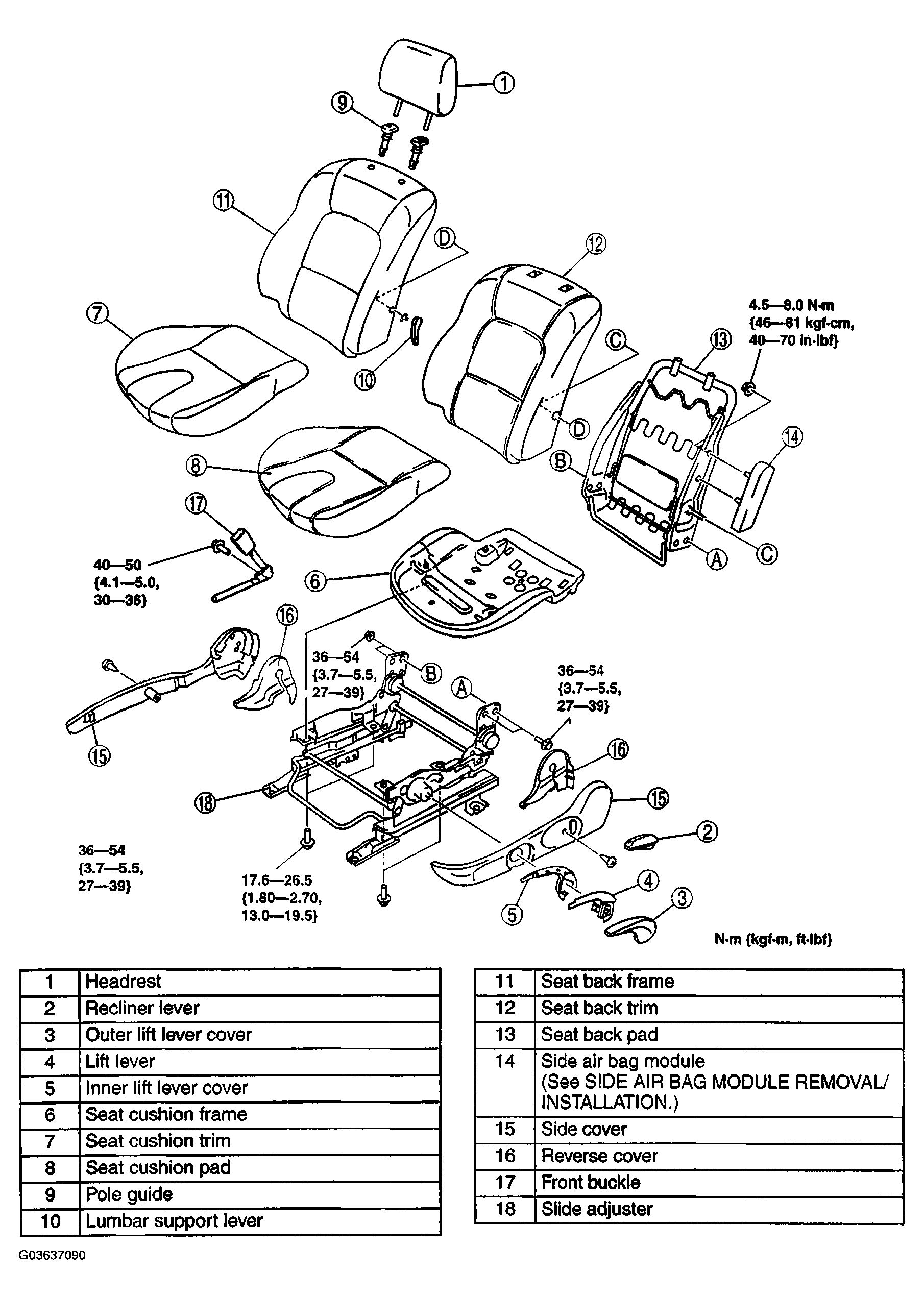

    3. Fig 1: Front Seat Disassembly/Assembly & Tightening Specifications - Drivers Seat
    G03637090Courtesy of MAZDA MOTORS CORP.

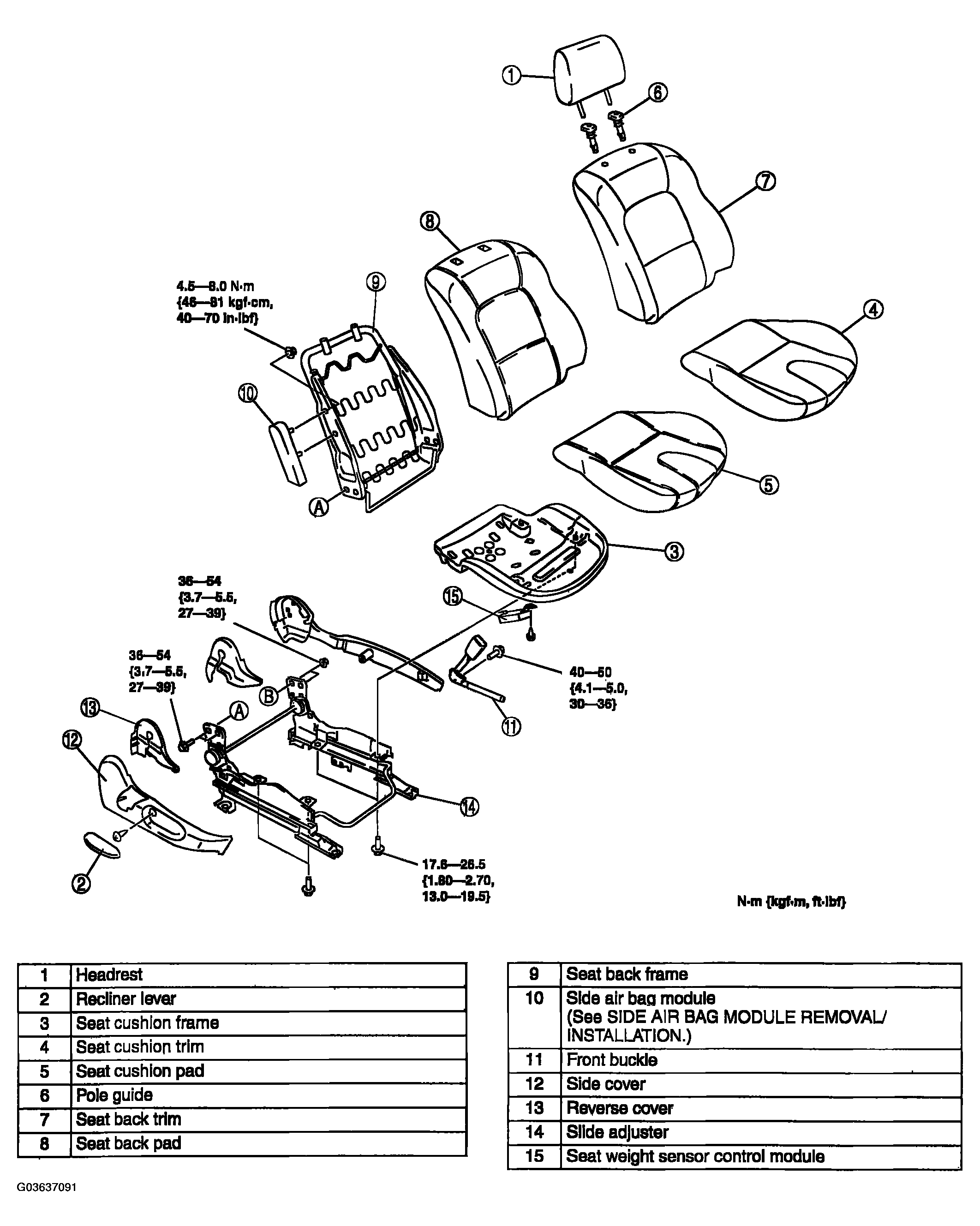

    Fig 2: Front Seat Disassembly/Assembly & Tightening Specifications - Passengers Seat
    G03637091Courtesy of MAZDA MOTORS CORP.
