Ignition Switch/Steering Lock
>>
Power Systems
>>
Relay Location
Relay Location

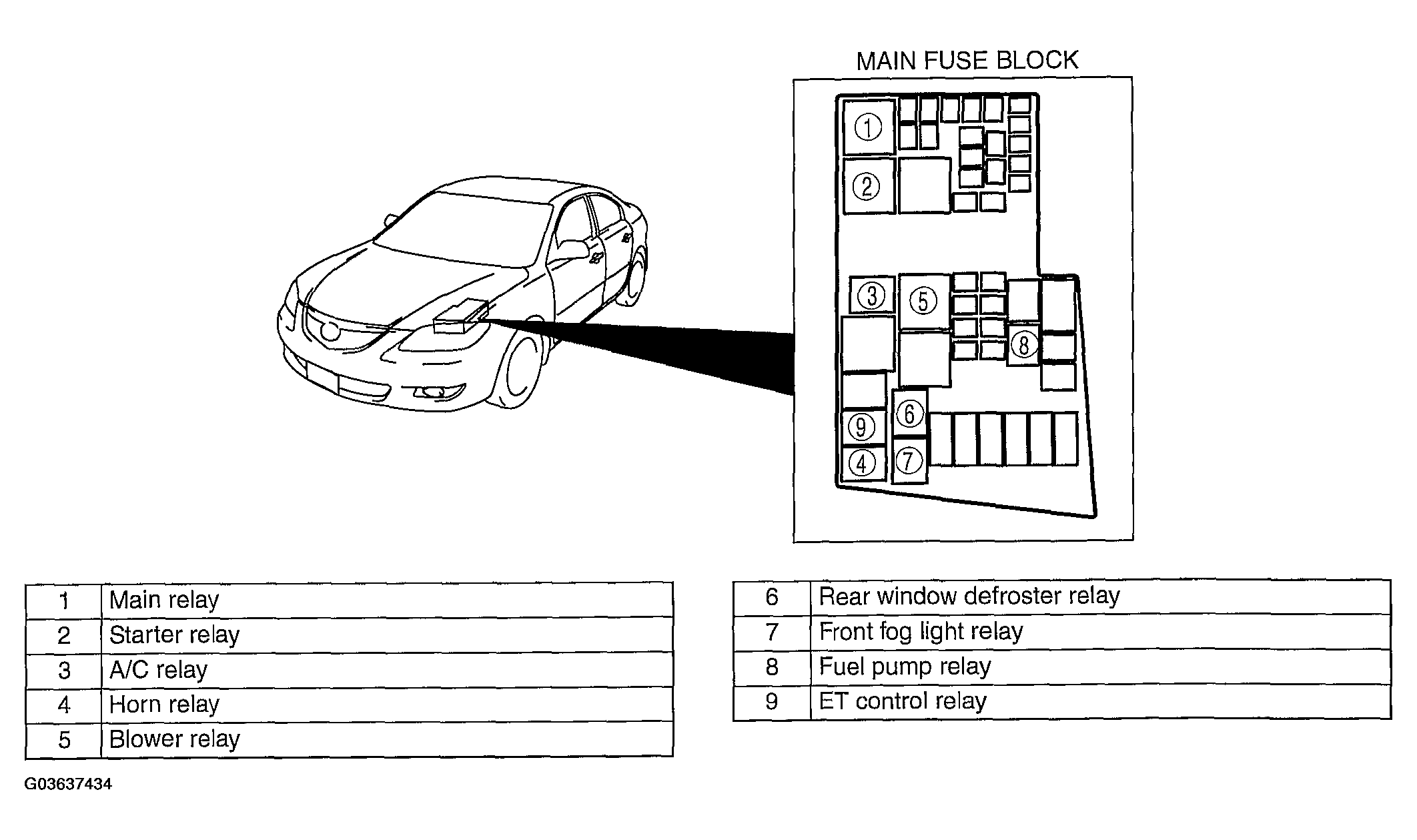

Fig 1: Identifying Relay
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
