Rear Power Window Regulator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Rear beltline molding (4 door) (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
    2. Sail garnish (5 door) (See SAIL GARNISH REMOVAL/INSTALLATION .)
    3. Rear door garnish (5 door) (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
    4. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    5. Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
    6. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION  )
    7. Rear power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION  )
  3. Remove the nuts.

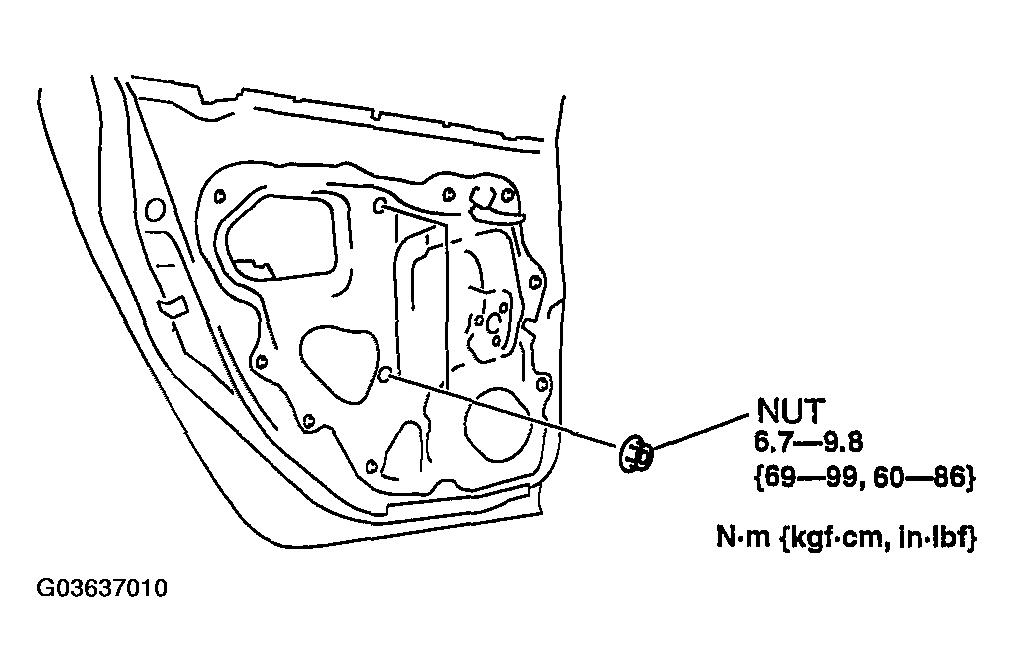

    Fig 1: Removing Nuts
    G03637010Courtesy of MAZDA MOTORS CORP.
  4. Insert your hand through the rear speaker installation hole, rotate the drum housing in the direction shown in the figure and disengage the tabs from the rear door module.

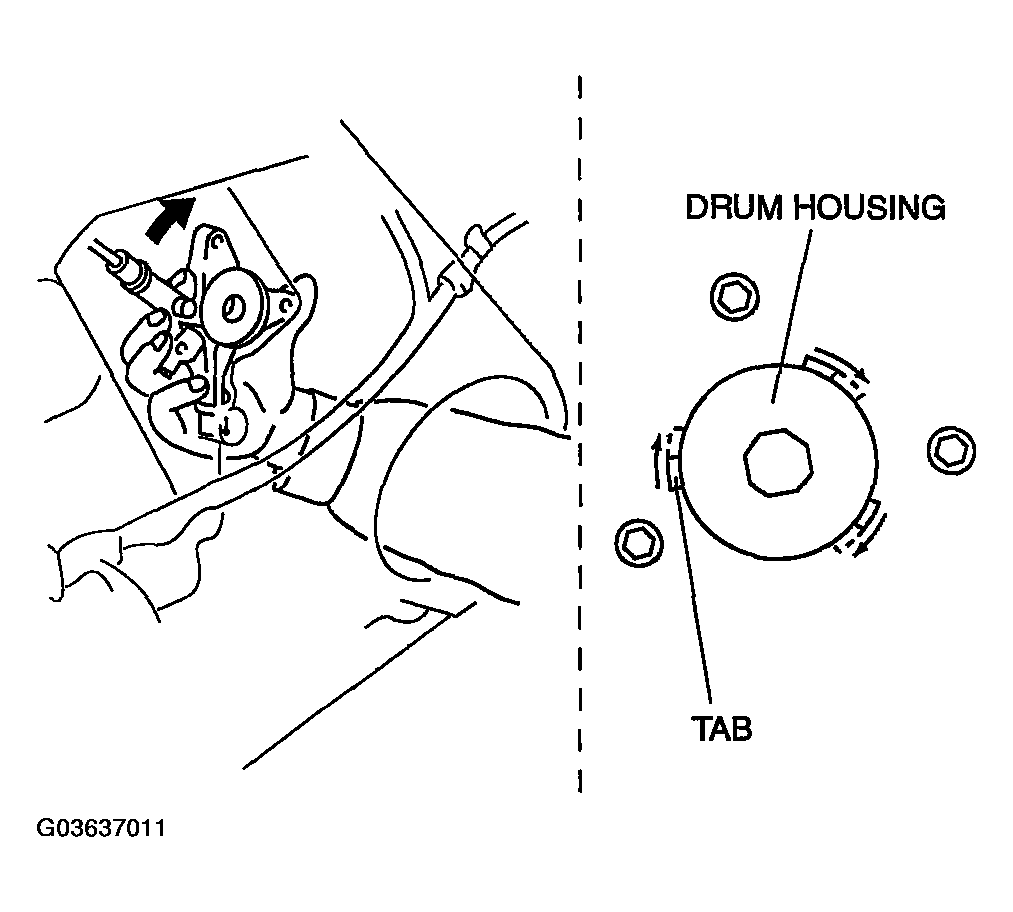

    Fig 2: Disconnecting Drum Housing From Rear Door Module
    G03637011Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear power window regulator through the speaker installation hole.
  6. Install in the reverse order of removal.
    CAUTION:
    • Make sure the cable does not unspool from the drum housing when installing.

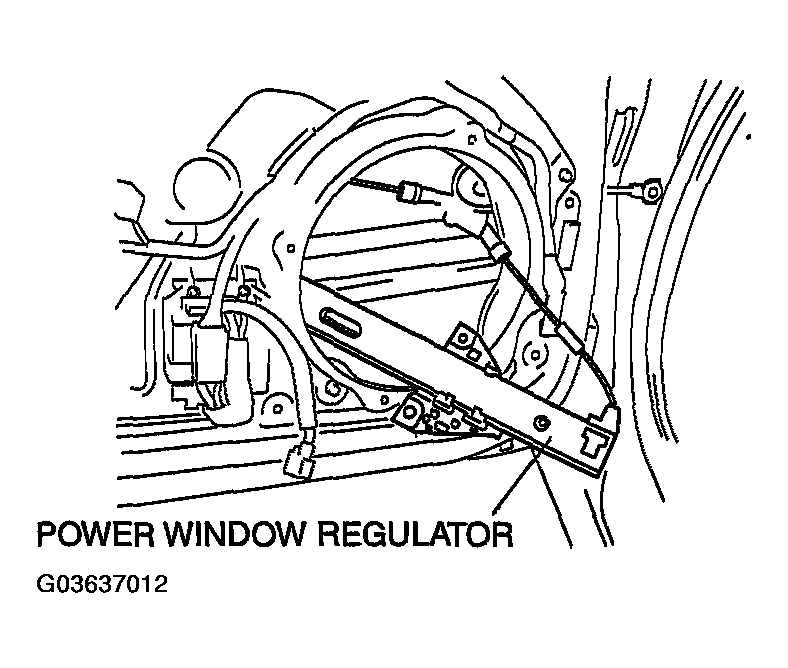

    Fig 3: Rear Power Window Regulator Removal/Installation
    G03637012Courtesy of MAZDA MOTORS CORP.
